7 - Logging & Post-Processing
GEMS offers a variety of options to collect data during simulation runs and process them to obtain aggregated statistics. This tutorial teaches you how to access the data and customize how data is being collected and processed.
Internal Loggers
Accessing a simulation's internal loggers is easy. They can be accessed via infectionlogger(sim), deathlogger(sim), testlogger(sim), pooltestlogger(sim), quarantinelogger(sim), or customlogger(sim). Here's the data that is being logged for all infections:
using GEMS
sim = Simulation()
run!(sim)
inf_logger = infectionlogger(sim)
dataframe(inf_logger)Output
[ Info: 23:40:26 | Initializing Simulation [Simulation 79] with default configuration
[ Info: 23:40:26 | └ Creating population
[ Info: 23:40:28 | └ Creating simulation object
[ Info: 23:40:29 | Running Simulation Simulation 79
100.0%┣████████████████████████████████████████┫ 365 days/365 days [00:29<00:00, 13 days/s]
75908×19 DataFrame
Row │ infection_id tick id_a id_b infectious_tick removed_tick death_tick ⋯
│ Int32 Int16 Int32 Int32 Int16 Int16 Int16 ⋯
───────┼───────────────────────────────────────────────────────────────────────────────────
1 │ 1 0 -1 74571 5 13 -1 ⋯
2 │ 2 0 -1 48307 1 7 -1 ⋯
⋮ │ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮
75907 │ 75907 177 4685 36171 177 183 -1 ⋯
75908 │ 75908 181 4685 33557 185 191 -1 ⋯
10 columns and 75904 rows omittedPut a ? into the Julia REPL and call help?> dataframe(::InfectionLogger) to get an overview of the columns that are available in the InfectionLogger's dataframe. Replace the argument ::InfectionLogger with any of the other logger types to see their descriptions or look up the Logger section in the API documentation.
The PostProcessor
The PostProcessor is the binding element between the raw data coming from the simulation's internal loggers and the ResultData object. It is instantiated with the Simulation object and performs some initial operations and joins on the raw data, and stores the results in internal dataframes (infectionsDF, populationDF, deathsDF, testsDF, pooltestsDF, quarantinesDF). An exception is the sim_infectionsDF-dataframe which only contains infections that happend during the simulation, exluding all initial, seeding infections. This example shows how the PostProcessor's internal infections-dataframe is already joined with data from the population-dataframe:
using GEMS
sim = Simulation()
run!(sim)
pp = PostProcessor(sim)
infectionsDF(pp)Output
[ Info: 23:41:39 | Initializing Simulation [Simulation 80] with default configuration
[ Info: 23:41:39 | └ Creating population
[ Info: 23:41:40 | └ Creating simulation object
[ Info: 23:41:41 | Running Simulation Simulation 80
100.0%┣█████████████████████████████████████████┫ 365 days/365 days [00:57<00:00, 6 days/s]
75798×47 DataFrame
Row │ infection_id tick id_a id_b infectious_tick removed_tick ⋯
│ Int32 Int16 Int32 Int32 Int16 Int16 ⋯
┼────────────────────────────────────────────────────────────────────────
1 │ 7180 36 61265 1 38 44 ⋯
2 │ 71586 88 77749 2 91 98 ⋯
⋮ │ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮
75798 │ 42048 60 61117 100000 64 72 ⋯
38 columns and 75794 rows omittedYou might have noticed, that this dataframe contains characteristics about the infecting and infected individuals (e.g., age or sex) or whether they were detected. It is now much easier to use this data to calculate more sophisticated statistics such as an age-age contact matrix for infections. Many processing functions are already available. Here's how you can calculate the effective reproduction rate per time unit using the PostProcessor:
using GEMS
sim = Simulation()
run!(sim)
pp = PostProcessor(sim)
effectiveR(pp)Output
[ Info: 23:43:16 | Initializing Simulation [Simulation 81] with default configuration
[ Info: 23:43:16 | └ Creating population
[ Info: 23:43:18 | └ Creating simulation object
[ Info: 23:43:19 | Running Simulation Simulation 81
100.0%┣█████████████████████████████████████████┫ 365 days/365 days [01:25<00:00, 4 days/s]
365×7 DataFrame
Row │ tick effective_R in_hh_effective_R out_hh_effective_R rolling_R ⋯
│ Int64 Float64 Float64 Float64 Float64 ⋯
─────┼──────────────────────────────────────────────────────────────────────────
1 │ 1 2.21429 0.571429 1.64286 2.21429 ⋯
2 │ 2 1.45833 0.541667 0.916667 1.83631 ⋯
⋮ │ ⋮ ⋮ ⋮ ⋮ ⋮
364 │ 364 0.0 0.0 0.0 0.0 ⋯
365 │ 365 0.0 0.0 0.0 0.0 ⋯
361 rows omittedLook up the Post-Processor section in the API documentation for a full list of available options.
Custom Post-Processing
In some cases, you might want to add custom functionalities to the PostProcessor. The following example add a new post-processor function that calculates the number of infections where a older person infected a younger person:
using GEMS, DataFrames
function old_infects_young(pp::PostProcessor)
infs = sim_infectionsDF(pp) # load the simulated infections
filtered = infs[infs.age_a .> infs.age_b, :] # filter for Age A > Age B
grouped = groupby(filtered, :tick) # group by simulation time (tick)
res = combine(grouped, nrow => :count) # combine count
return res
end
sim = Simulation()
run!(sim)
pp = PostProcessor(sim)
old_infects_young(pp)Output
[ Info: 23:45:19 | Initializing Simulation [Simulation 82] with default configuration
[ Info: 23:45:19 | └ Creating population
[ Info: 23:45:21 | └ Creating simulation object
[ Info: 23:45:22 | Running Simulation Simulation 82
100.0███████████████████████████████████████████┫ 365 days/365 days [00:54<00:00, 7 days/s]
143×2 DataFrame
Row │ tick count
│ Int16 Int64
─────┼──────────────
1 │ 0 3
2 │ 1 7
⋮ │ ⋮ ⋮
142 │ 155 1
143 │ 171 1
139 rows omittedWe advise doing any post-processing via the PostProcessor infrastructure whenever possible, as this will make it very easy to forward you custom results to a custom ResultData object. These things will be explained in the subsequent sections.
The ResultData object
Custom ResultDataStyles
- how to get custom post-processing functions in here?
Custom Loggers
A lot of data is recorded automatically, i.e., infections or deaths. If you want to collect data during the simulation run that is not available via the default loggers, you can add custom mechanics. The example below tracks how many infected individuals live in households that have 3 or more members. Doing so requires to set up a CustomLogger(...). It takes an arbitrary number of arguments that must be one-argument functions whereas the argument has to be the simulation object. These functions are called once every step when running a simulation.
using GEMS
sim = Simulation()
function logging_func(sim)
cnt = 0 # counting variable
inds = individuals(sim)
for i in inds
h = household(i, sim)
if infected(i) && size(h) >= 3
cnt += 1
end
end
return cnt
end
cl = CustomLogger(infected_in_large_households = logging_func)
customlogger!(sim, cl)
run!(sim)
rd = ResultData(sim)

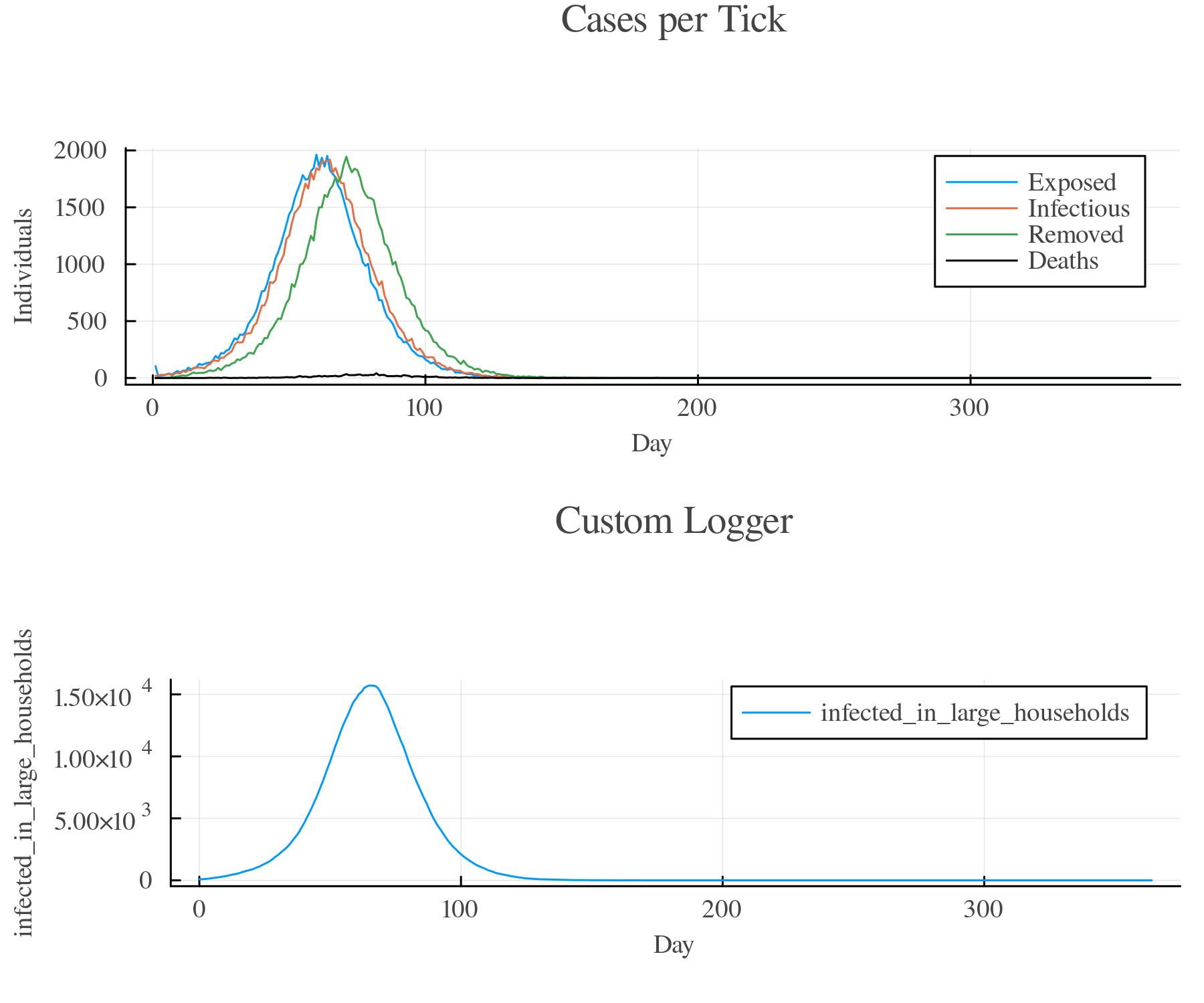

gemsplot(rd, type = (:TickCases, :CustomLoggerPlot))Plot
The ResultData object now contains a dataframe that contains the collected data of the custom logger with one column per argument function that was passed to the CustomLogger(...)
customlogger(rd)Output
365×2 DataFrame
Row │ infected_in_large_households tick
│ Any Any
─────┼────────────────────────────────────
1 │ 82 0
2 │ 92 1
⋮ │ ⋮ ⋮
364 │ 0 363
365 │ 0 364
361 rows omittedYou might have noticed, that loggers can severely slow down the simulation runtime if implemented inefficiently as they are executed in every step and potentially require iterations through all individuals every time. Julia provides a number of handy techniques that can speed up calculations significantly. If you feel confident using so-called lambda-functions, you can rewrite the above example to prevent unnecessary memory allocations. The code below does exactly the same as the code above, but takes a fraction of the time.
using GEMS
sim = Simulation()
pred_func(i, sim) = infected(i) && size(household(i, sim)) >= 3
cl = CustomLogger(infected_in_large_households =
sim -> count(i -> pred_func(i, sim), population(sim)))
customlogger!(sim, cl)
run!(sim)
rd = ResultData(sim)
gemsplot(rd, type = (:TickCases, :CustomLoggerPlot))
