9 - Intervention Strategies

GEMS offers extensive options for intervention modeling. We represent interventions using the "Trigger-Strategy-Measure" (TriSM) notation. Find an introduction to the TriSM notation here.

TriSM is more of a modeling paradigm and as such offers countless scenarios that could be modeled. This chapter contains a selection of examples to give you a broad idea. The examples will always compare an invervention scenario with a non-restricted baseline scnario to verify that there is an effect.

Where's the list of measures I can use to build up strategies?

Run i_measuretypes() to get a list of all measures that apply to individuals or s_measuretypes() for a list of all measures that apply to settings. If you want to learn more about any of the measure types, put a ? into the Julia REPL and call help?> SelfIsolation (replace SelfIsolation with the measure name you want to learn about).

Self-Isolation With Symptoms

Here's an example that sends individuals into household-isolation for 14 days, if they are symptomatic. To do so, we set up an IStrategy called "self_isolation" and add an instance of the SelfIsolation measure with the duration parameter set to 14.

Scenario Summary:

  • Individuals go into self-isolation for 14 days, immediately upon experiencing symptoms
  • Isolation prevents out-household contacts, but not in-household contacts
  • Individuals end their isolation after 14 days, regardless of their infection state
using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

# simulation with 14-day isolation (at home) upon experiencing symptoms
scenario = Simulation(label = "Scenario")
self_isolation = IStrategy("Self Isolation", scenario)
add_measure!(self_isolation, SelfIsolation(14))
trigger = SymptomTrigger(self_isolation)
add_symptom_trigger!(scenario, trigger)

run!(baseline)
run!(scenario)

rd_b = ResultData(baseline)
rd_s = ResultData(scenario)

gemsplot([rd_b, rd_s], type = (:TickCases, :CumulativeDiseaseProgressions, :CumulativeIsolations))

Plot

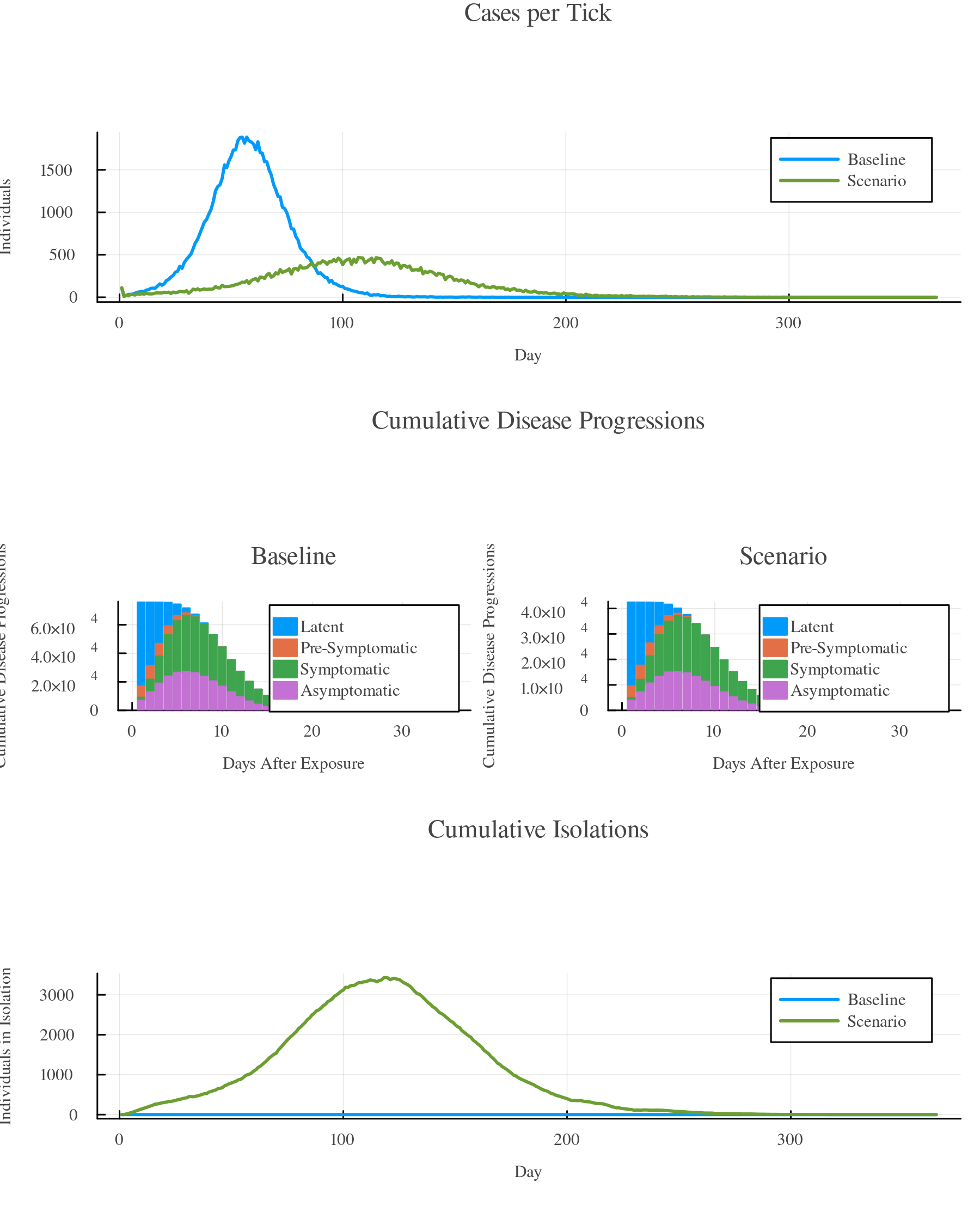

The results show the difference between daily cases in both scenarios. It also displays that there are around one third of asymptomatic cases in both experiments that would not be affected by this measure. Using the :CumulativeIsolations plot, you can inspect the number of people who are currently in isolation at any given time.

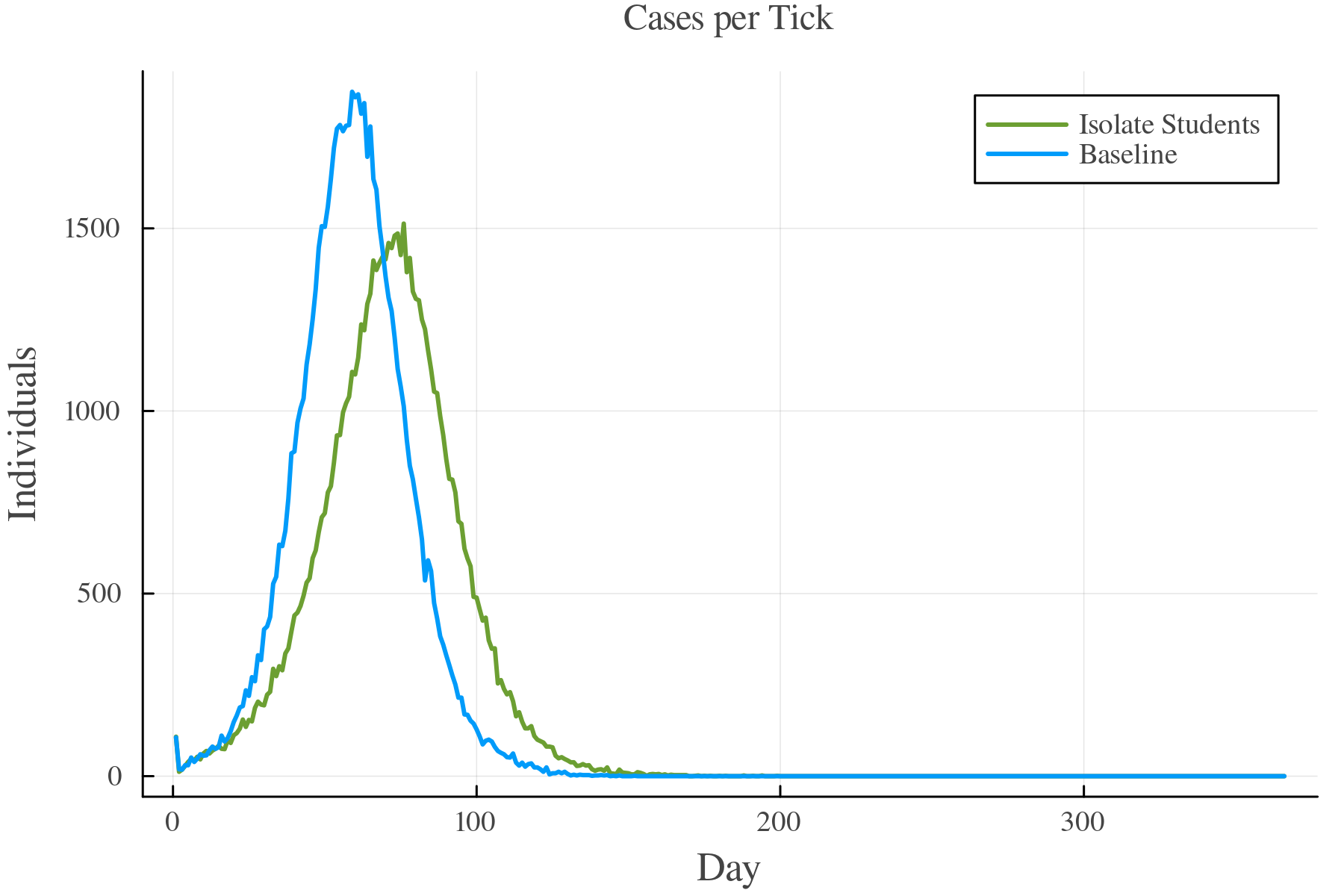

Conditioned Measures (Isolation)

The execution of measures and strategies can be conditioned. Here's the self-isolation scenario again but it shall only apply to students. School kids that are symptomatic shall be isolated for 14 days. We can achieve this by passing the optional condition-argument to the add_measure!(...) function. The condition itself must be a one-argument predicate function (a function that returns true or false) that is being evaluated once the measure is being triggered. In the example below, we pass the is_student(individual) function that returns true if an individual is a student.

Scenario Summary:

  • Students go into self-isolation for 14 days, immediately upon experiencing symptoms
  • Isolation prevents out-household contacts, but not in-household contacts
  • Students end their isolation after 14 days, regardless of their infection state
using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

# simulation with 14-day isolation (at home)
# upon experiencing symptoms if you are a student
scenario = Simulation(label = "Isolate Students")
self_isolation = IStrategy("Self Isolation", scenario)
add_measure!(self_isolation, SelfIsolation(14), condition = is_student)
trigger = SymptomTrigger(self_isolation)
add_symptom_trigger!(scenario, trigger)

run!(baseline)
run!(scenario)

rd_b = ResultData(baseline)
rd_s = ResultData(scenario)

gemsplot([rd_b, rd_s], type = :TickCases)

Plot

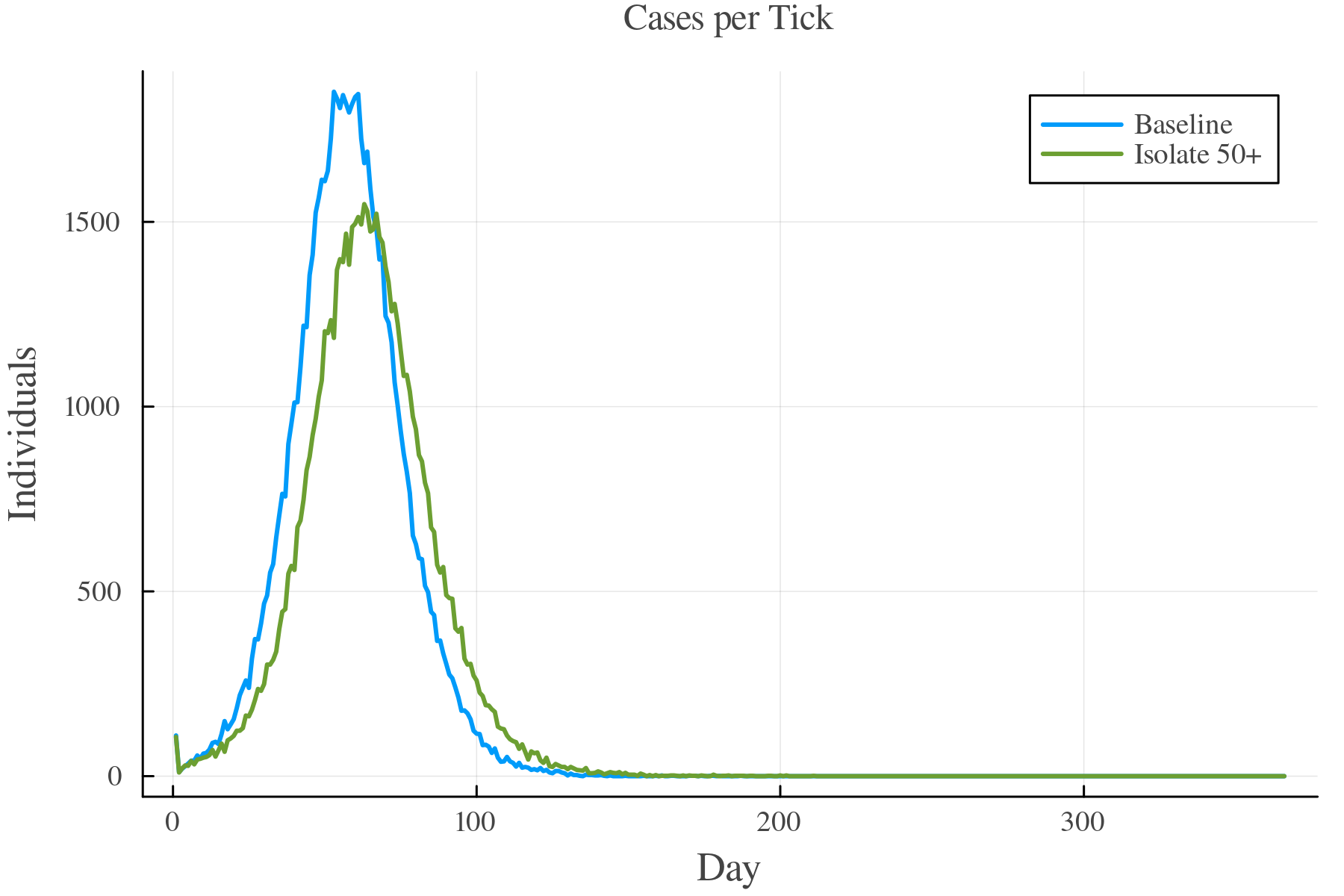

You can also setup a custom condition-function. Here's an example where people who are older than 50 should be isolated.

Scenario Summary:

  • Individuals of age 50+ go into self-isolation for 14 days, immediately upon experiencing symptoms
  • Isolation prevents out-household contacts, but not in-household contacts
  • Students end their isolation after 14 days, regardless of their infection state
using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

# function to evaluate whether an individual is over 50
function is_over_50(individual)
    return age(individual) >= 50
end

# simulation with 14-day isolation (at home)
# upon experiencing symptoms if you are 50+
scenario = Simulation(label = "Isolate 50+")
self_isolation = IStrategy("Self Isolation", scenario)
add_measure!(self_isolation, SelfIsolation(14), condition = is_over_50)
trigger = SymptomTrigger(self_isolation)
add_symptom_trigger!(scenario, trigger)

run!(baseline)
run!(scenario)

rd_b = ResultData(baseline)
rd_s = ResultData(scenario)

gemsplot([rd_b, rd_s], type = :TickCases)

Plot

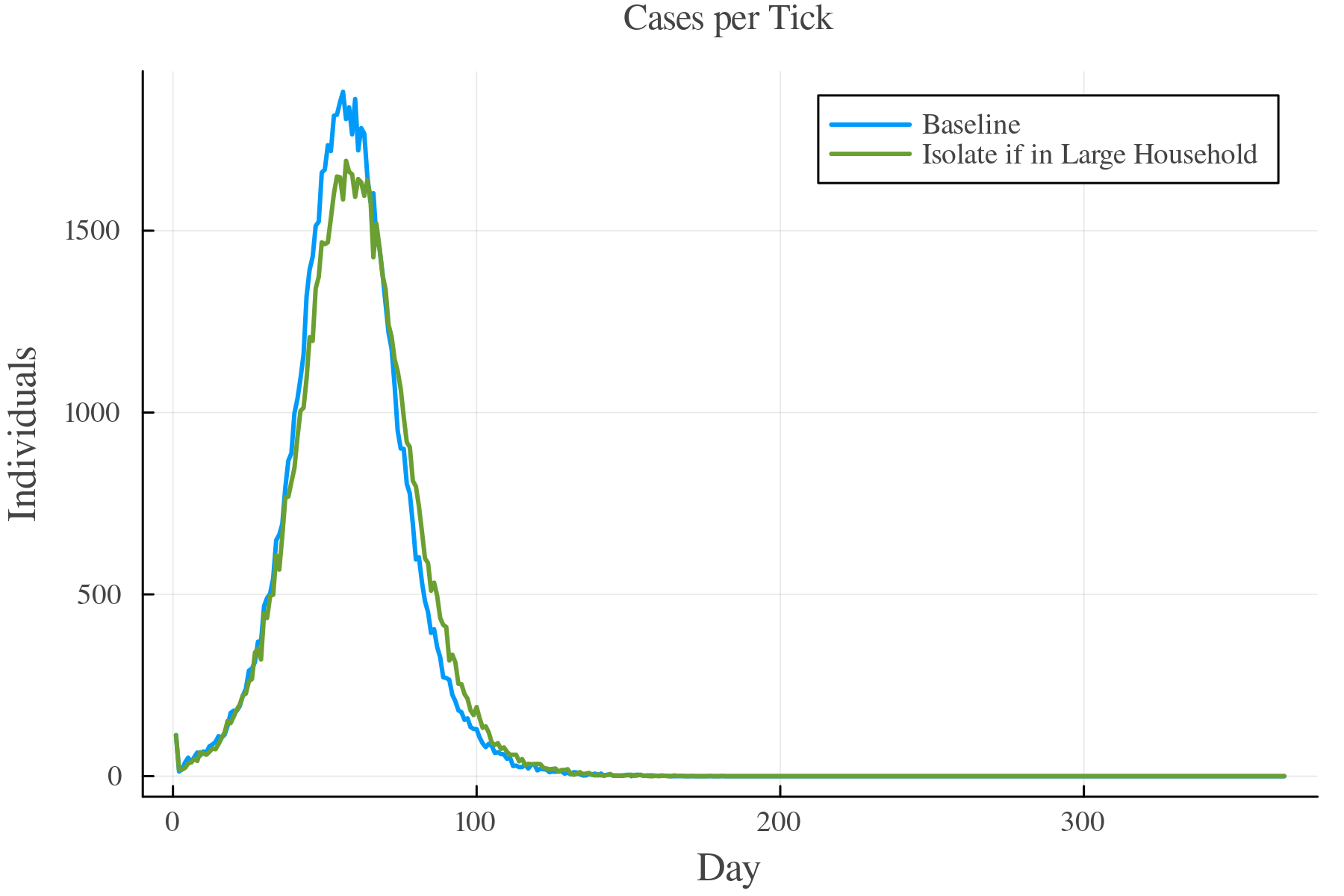

It's also possible to pass (one-argument) lambda functions where the argument will be the individual. In this is example, we only send people into self-isolation who are living in households larger than 5.

Scenario Summary:

  • Individuals living in households of size 5+ go into self-isolation for 14 days, immediately upon experiencing symptoms
  • Isolation prevents out-household contacts, but not in-household contacts
  • Students end their isolation after 14 days, regardless of their infection state
using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

# simulation with 14-day isolation (at home)
# upon experiencing symptoms if you are a in a 5+ household
scenario = Simulation(label = "Isolate if in Large Household")
self_isolation = IStrategy("Self Isolation", scenario)
add_measure!(self_isolation, SelfIsolation(14),
    condition = i -> size(household(i, scenario)) > 5)
trigger = SymptomTrigger(self_isolation)
add_symptom_trigger!(scenario, trigger)

run!(baseline)
run!(scenario)

rd_b = ResultData(baseline)
rd_s = ResultData(scenario)

gemsplot([rd_b, rd_s], type = :TickCases)

Plot

Does it work the same way for SStrategies and SMeasures?

Yes. In the above examples, we condition measures that apply to individuals (IMeasures). The argument in the condition-functions is the focus individual that this measure applies to. For SMeasures, the argument for the condition-functions is the respective setting.

Household Isolation

The previous examples let a symptomatic individual stay at home but did not force the other household members to do too. If you want to isolate the entire household of symptomatic individuals, the following code will help you. It is very similar to the previous example but instead of triggering the isolation strategy directly, an individual becoming symptomatic will trigger the "find_household_members" strategy that contains a FindSettingMembers measure. This measure is parameterized to detect all members of the individual's Household setting. The members are then all isolated individually, the same way as in the previous example. This can also be considered a form of contact tracing.

Scenario Summary:

  • One individual experiencing symptoms will cause all household members to go into isolation for 14 days
  • This prevents all out-household contacts, within household contacts are still possible
  • After 14 days, all household members end their isolation, regardless of any of their infection states
using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

# simulation with 14-day isolation for all household members
scenario = Simulation(label = "Scenario")
self_isolation = IStrategy("Self Isolation", scenario)
add_measure!(self_isolation, SelfIsolation(14))
# identify list of household members
find_household_members = IStrategy("Find Household Members", scenario)
add_measure!(find_household_members, FindSettingMembers(Household, self_isolation))
# trigger "household tracing"
trigger = SymptomTrigger(find_household_members)
add_symptom_trigger!(scenario, trigger)

run!(baseline)
run!(scenario)

rd_b = ResultData(baseline)
rd_s = ResultData(scenario)

gemsplot([rd_b, rd_s], type = (:TickCases, :CumulativeIsolations))

Plot

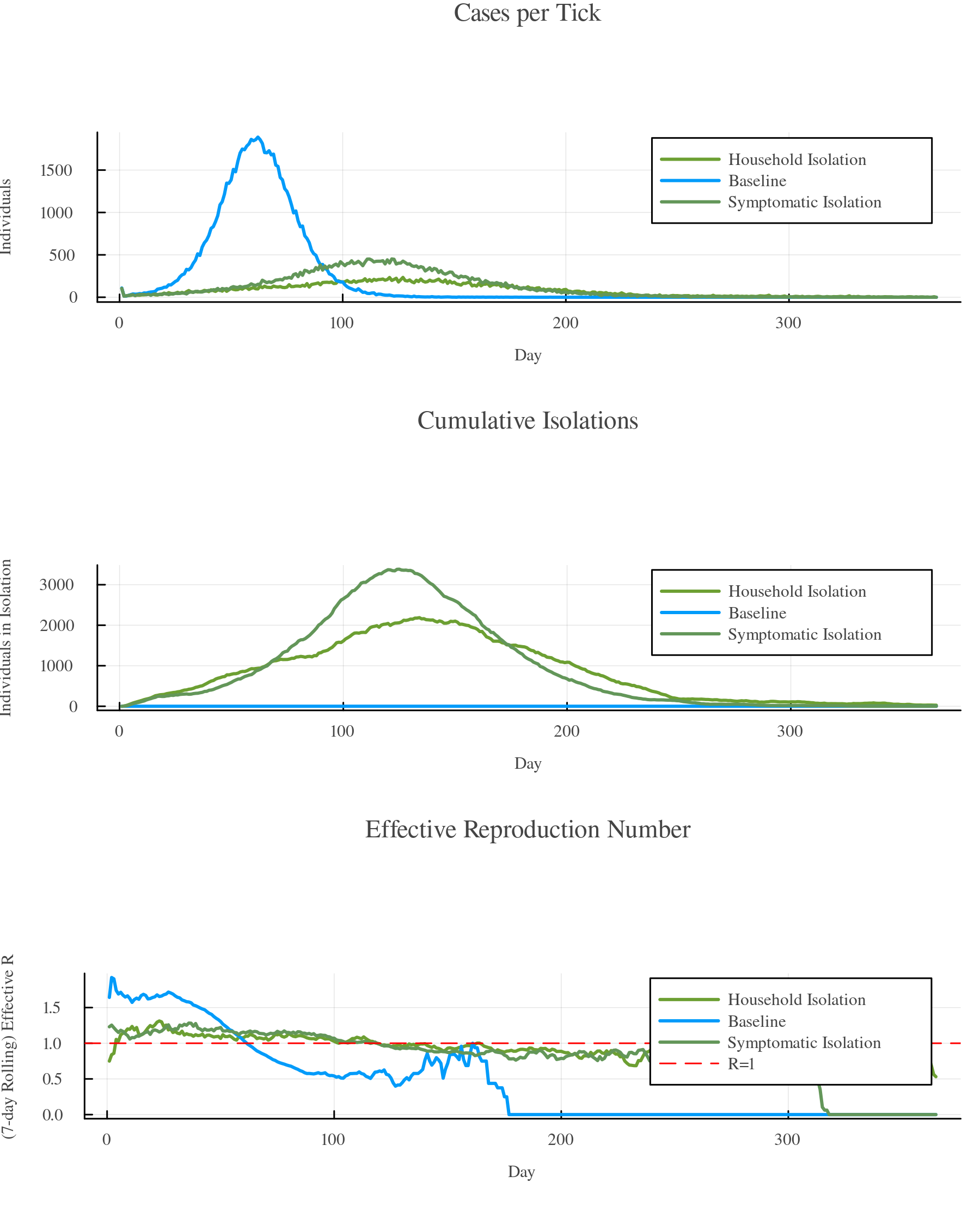

The numbers suggest, that isolating the entire household prevents more cases, compared to isolating only the symptomatic individual, but also causes more isolations. Using gemsplot, you can compare both scenarios and the baseline. The following code combines the previous two examples:

using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

# simulation with 14-day isolation (at home) upon experiencing symptoms
scenario_1 = Simulation(label = "Symptomatic Isolation")
self_isolation = IStrategy("Self Isolation", scenario_1)
add_measure!(self_isolation, SelfIsolation(14))
trigger = SymptomTrigger(self_isolation)
add_symptom_trigger!(scenario_1, trigger)

# simulation with 14-day isolation for all household members
scenario_2 = Simulation(label = "Household Isolation")
self_isolation = IStrategy("Self Isolation", scenario_2)
add_measure!(self_isolation, SelfIsolation(14))
find_household_members = IStrategy("Find Household Members", scenario_2)
add_measure!(find_household_members, FindSettingMembers(Household, self_isolation))
trigger = SymptomTrigger(find_household_members)
add_symptom_trigger!(scenario_2, trigger)

run!(baseline)
run!(scenario_1)
run!(scenario_2)

rd_b = ResultData(baseline)
rd_s1 = ResultData(scenario_1)
rd_s2 = ResultData(scenario_2)

gemsplot([rd_b, rd_s1, rd_s2],
    type = (:TickCases, :CumulativeIsolations, :EffectiveReproduction),
    legend = :topright)

Plot

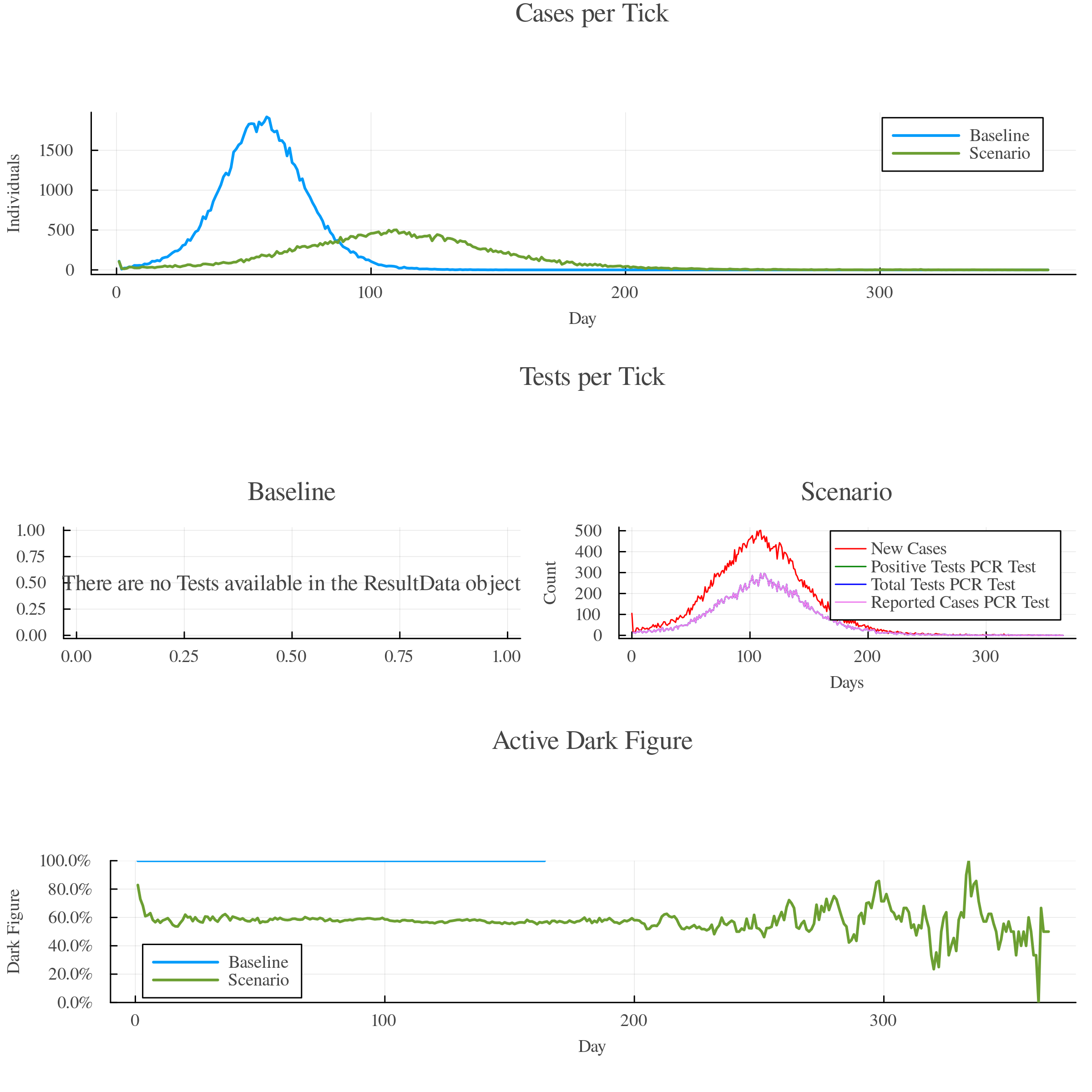

Testing and Isolation

GEMS comes with pre-defined building blocks for modeling testing strategies. The following example subjects symptomatic individuals to a test and isolates them for 14 days, once the test is positive. For that, a TestType is being defined, providing a name ("PCR_Test"), the pathogen (taken from the Simulation object), and the Simulation object itself. The self-isolation strategy is the same as in the first example. However, it is only fired, once an individual is tested positive. This is configured via a second strategy that we call "testing" where we add a Test measure that should use the previously defined "PCRTest" and follow a positive test up with the "self\isolation" strategy. A SymptomTrigger fires the "testing" strategy once an individual becomes symptomatic.

Scenario Summary:

  • Upon experiencing symptoms, individuals are being tested immediately
  • The test has a 100% sensitivity and 100% specificity
  • Test results are available immediately
  • If the test result is positive, the individual goes into isolation for 14 days
using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

# simulation with 14-day isolation after positive test
scenario = Simulation(label = "Scenario")
# define test type (PCR test)
PCR_Test = TestType("PCR Test", pathogen(scenario), scenario)
# define self isolation strategy
self_isolation = IStrategy("Self Isolation", scenario)
add_measure!(self_isolation, SelfIsolation(14))
# define testing strategy that triggers self isolation
testing = IStrategy("Testing", scenario)
add_measure!(testing, Test("Test", PCR_Test, positive_followup = self_isolation))

trigger = SymptomTrigger(testing)
add_symptom_trigger!(scenario, trigger)

run!(baseline)
run!(scenario)

rd_b = ResultData(baseline)
rd_s = ResultData(scenario)

gemsplot([rd_b, rd_s], type = (:TickCases, :TickTests, :ActiveDarkFigure), size = (800, 800))

Plot

The results are very similar to the first example as all symptomatic individuals are immediately screened with a "perfect" test (100% sensitivity & specificity) and immediately sent in isolation. Of course, in reality this not very realistic. Therefore, GEMS offers options to delay measures (e.g., only getting a test one day after symptom onset). Please look up the respective tutorial.

Delayed Measures (Testing)

The timing of intervention strategies is crucial in most applications. GEMS has two mechanisms to define the execution time of a measure. Both can be passed as optional arguments to the add_measure!(...) function. The offset defines how many ticks should be between the trigger event of a measure's parent strategy and the execution of the respective measure. It's default value is 0. The delay takes a one-argument function that is being evaluated at runtime and needs to return an integer value. These functions work very similar to the condition-function. Please look up the previous example on conditioned measures. The results of this delay-function is added on top of the offset. It can be used to delay the execution of measures, e.g., based on an individual's personal characteristics. In the following scenarios, we compare two scenarios: (1) where individuals get a test immediately and go into isolation if the results come back positive (as in the previous tutorial) and (2) where individuals below the age of 50 get the test immediately an 50+ individuals get them one day after.

Scenario Summary:

  • Upon experiencing symptoms, individuals are being tested
  • In scenario 1, tests are being applied immediately. In scenario 2, tests are being applied with a one-day delay for people above the age of 50
  • The test has a 100% sensitivity and 100% specificity
  • Test results are available immediately
  • If the test result is positive, the individual goes into isolation for 14 days
using GEMS, Plots

# SCENARIO 1: No testing delay
scenario_1 = Simulation(label = "No Delay")
PCR_Test_1 = TestType("PCR Test", pathogen(scenario_1), scenario_1)
self_isolation_1 = IStrategy("Self Isolation", scenario_1)
add_measure!(self_isolation_1, SelfIsolation(14))
testing_1 = IStrategy("Testing", scenario_1)
add_measure!(testing_1, Test("Test", PCR_Test_1, positive_followup = self_isolation_1))
trigger_1 = SymptomTrigger(testing_1)
add_symptom_trigger!(scenario_1, trigger_1)

# SCENARIO 2: 1-day delay for 50+ people
scenario_2 = Simulation(label = "1-Day delay for 50+")
PCR_Test_2 = TestType("PCR Test", pathogen(scenario_2), scenario_2)
self_isolation_2 = IStrategy("Self Isolation", scenario_2)
add_measure!(self_isolation_2, SelfIsolation(14))
testing_2 = IStrategy("Testing", scenario_2)
add_measure!(testing_2, Test("Test", PCR_Test_2, positive_followup = self_isolation_2),
    delay = i -> age(i) >= 50 ? 1 : 0) # delay function
trigger_2 = SymptomTrigger(testing_2)
add_symptom_trigger!(scenario_2, trigger_2)

# run everything
b = Batch(scenario_1, scenario_2)
run!(b)
rd = ResultData(b)

plot(
    gemsplot(rd, type = :TickCases),
    gemsplot(rd, type = :TimeToDetection, ylims = (0, 6)),
    layout = (2, 1),
    size = (800, 800)
)

Plot

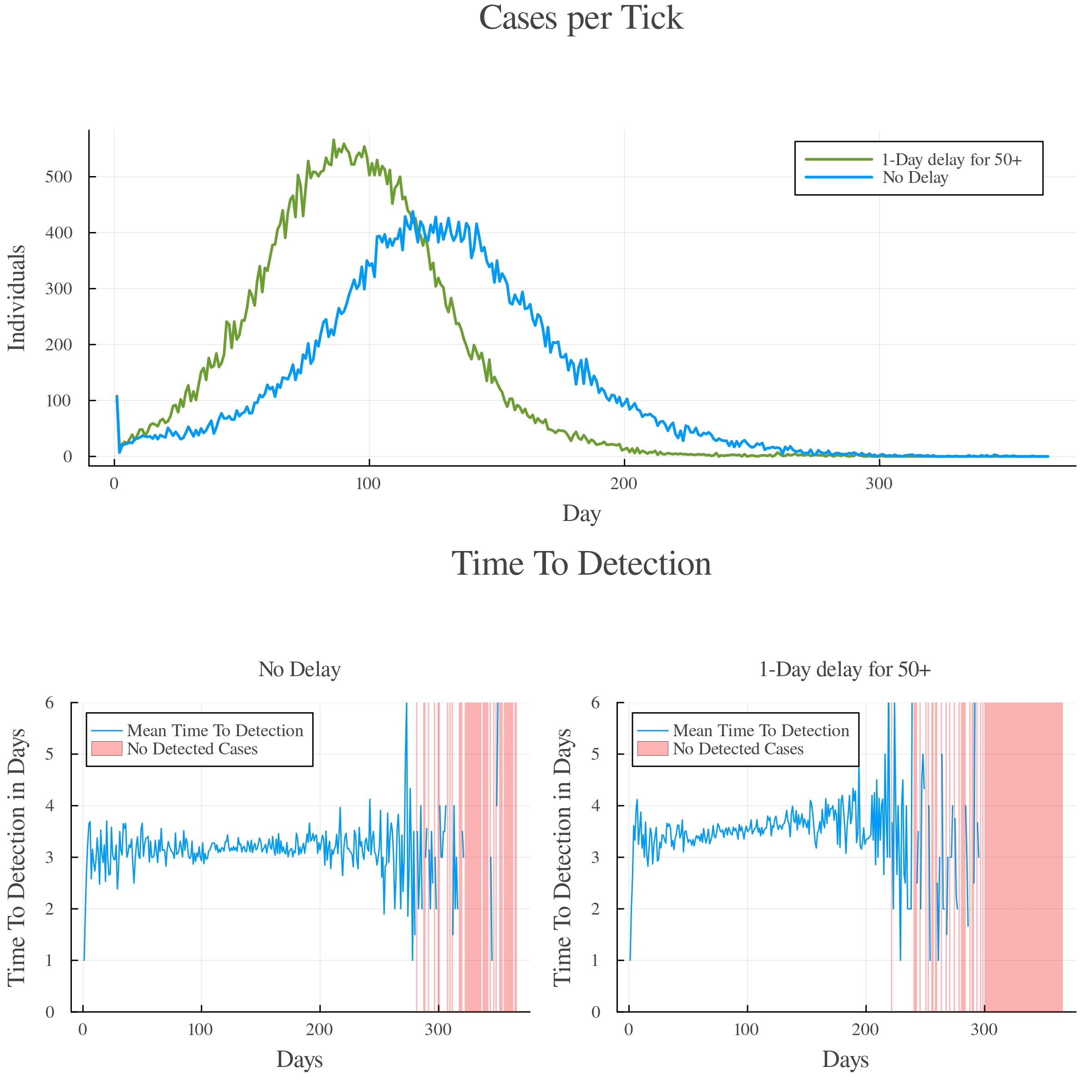

The above plot shows that just a one-day delay for just a fraction of the individuals can have a substantial impact on the overall daily cases. The Time-To-Detection plot visualizes the average time between exposure and a positive test result. You can see that the average time is around half a day longer in the delayed scenario.

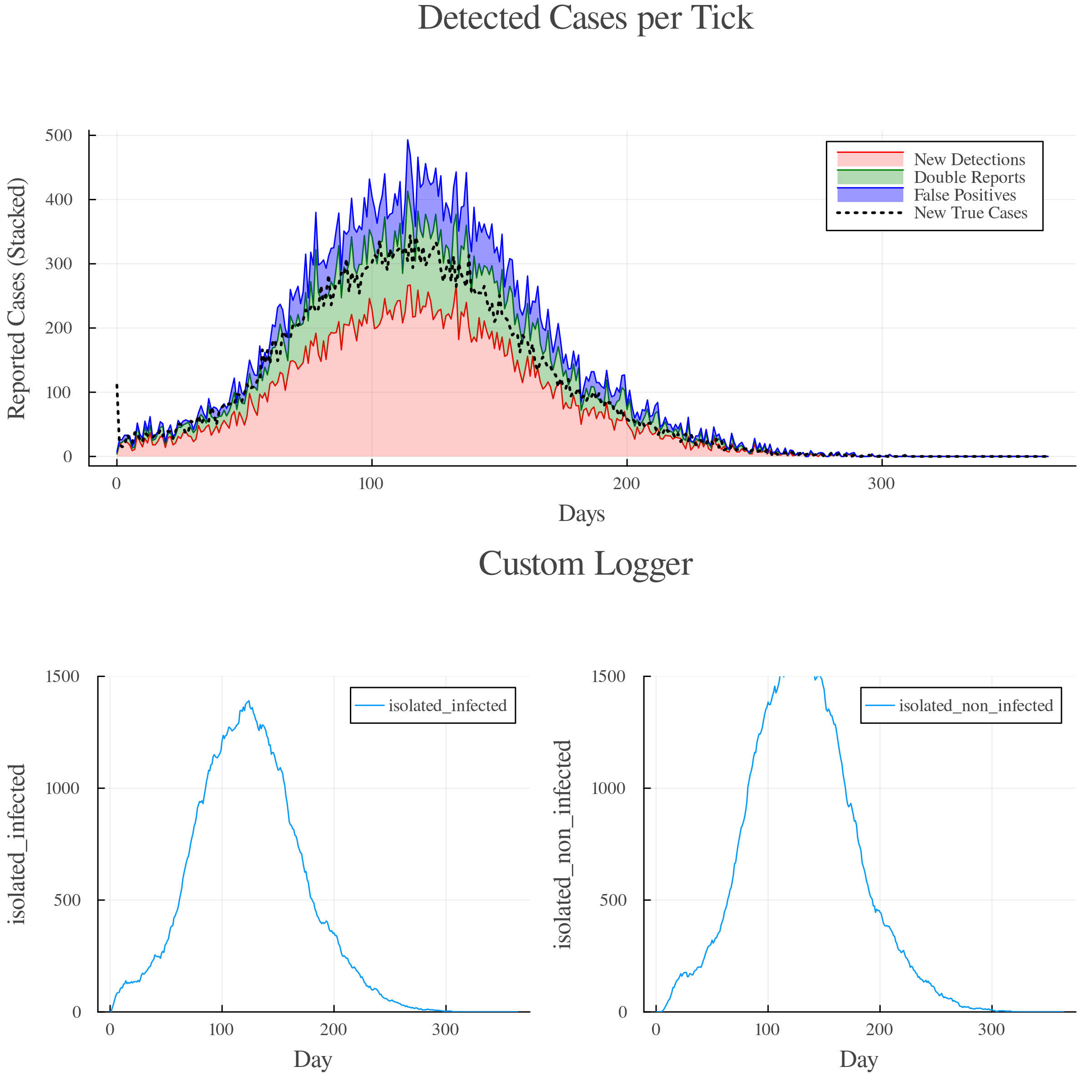

Subpar Test (Poor Specificity)

Mass-testing strategies can lead to a large number of individuals in isolation who are not actually infected if the test has a low specificity (false-positive-rate). In GEMS you can easily estimate the impact of subpar testing kits. In the example below, we assume a test with a 20% false-positive-rate (80% specificity). Once an individual experiences symptoms, all members of their household (including themselves) are subjected to a test and sent into household isolation for two weeks if the results are positive.

Scenario Summary:

  • Upon experiencing symptoms, all people in the symptomatc individual's household get tested (including the index individual)
  • The test has a specificity of 80%. It will identify a non-infected individual as infected in 20% of the cases (false positives)
  • If multiple people in the household are infected, each individual will get tested multiple times
  • Test results are available immediately
  • With a positive test result, the individual will go into self-isolation for 14 days
using GEMS, Plots

scenario = Simulation(label = "Household Testing")

# isolation strategy (14 days)
self_isolation = IStrategy("Self Isolation", scenario)
add_measure!(self_isolation, SelfIsolation(14))

# subpar test (80% specificity)
antigen_test = TestType("Antigen Test", pathogen(scenario), scenario, specificity = 0.8)

# testing strategy
testing = IStrategy("Testing", scenario)
add_measure!(testing, Test("Household Screening", antigen_test,
    positive_followup = self_isolation))

# strategy to detect household members
find_household = IStrategy("find Household Members", scenario)
add_measure!(find_household, FindSettingMembers(Household, testing))

# trigger houshold member identification
trigger = SymptomTrigger(find_household)
add_symptom_trigger!(scenario, trigger)

# setup count functions & custom logger
cnt_isolated_infected(sim) =
    count(i -> (isquarantined(i) && infected(i)), population(sim))
cnt_isolated_non_infected(sim) =
    count(i -> (isquarantined(i) && !infected(i)), population(sim))
cl = CustomLogger(
    isolated_infected = cnt_isolated_infected,
    isolated_non_infected = cnt_isolated_non_infected)
customlogger!(scenario, cl)

# run simulation & plot results
run!(scenario)
rd = ResultData(scenario)
plot(
    gemsplot(rd, type = :DetectedCases),
    gemsplot(rd, type = :CustomLoggerPlot, ylims = (0, 1500)),
    layout = (2, 1),
    size = (800, 800))

Plot

The "detected cases" plot now shows that there are more reported cases (sum of the stacked areas) than true new cases (black dotted line). This is interesting considering, that only 60% of the individual will trigger the strategy (40% are asymptomatic). The extensive testing strategy combined with the poor test quality leads to a substantial number of double reports (individuals who are tested positive multiple times) and false positives (individuals who tested positive without being infected). It can be seen that the number of isolated non-infected individuals peak higher than actually infected individuals in isolation, even though we only send people into isolation if they produced a positive test result.

Ghost Epidemic

In this example, we show how a test with low specificity can cause a "ghost" epidemic. We start with the initial 100 infections in the default model and set the transmission_rate to 0, effectively preventing all further infections. For each of the 100 initial infections, we sample 10 random individuals ("contacts") from the GlobalSetting (the setting that contains all individuals in the simulation). We subject these selected contacts to a test with low specificity (85%), which causes a false positive result in 15% of the cases. A positive test will again trigger the selection of 10 more random contacts. We assume that this is a very basic form of "contact tracing".

Note: In the example below, we first define all strategies and add measures later. That's necessary enable the recursive execution of strategies (they have to be "known" in order to reference them in measures).

Scenario Summary:

  • No transmissions, only the initial 100 infections are actually ill
  • Upon experiencing symptoms, we select 10 random individuals from the global setting with a 1-5 day delay
  • Each individual will be subjected to a 85%-specificity test
  • A positive test result will again cause the sampling of 10 random "contacts"
using GEMS

# simulation with no transmissions and switched on global setting
sim = Simulation(transmission_rate = 0.0, global_setting = true)
# strategy definitions
find_globalsetting = IStrategy("find setting", sim)
find_contacts = SStrategy("find contacts", sim)
testing = IStrategy("testing", sim)
# test with 85% specificity
poor_test = TestType("Poor Test", pathogen(sim), sim, specificity = 0.85)
# identify global setting
add_measure!(find_globalsetting, FindSetting(GlobalSetting, find_contacts))
# sample 10 contacts grom global setting with 1-5 day delay
add_measure!(find_contacts,
    FindMembers(testing, sample_size = 10), delay = x -> rand(1:5))
# test individual if unreported or last report more than 6 months old
# run "contact tracing" for positive test results
add_measure!(testing,
    Test("poor-test", poor_test, positive_followup = find_globalsetting),
    condition = i -> (last_reported_at(i) <= 0 || tick(sim) - last_reported_at(i) >= 180))

trigger = SymptomTrigger(find_globalsetting)
add_symptom_trigger!(sim, trigger)

run!(sim)
rd = ResultData(sim)
gemsplot(rd,
    type = (:CompartmentFill, :EffectiveReproduction, :DetectedCases),
    legend = :topright)

Plot

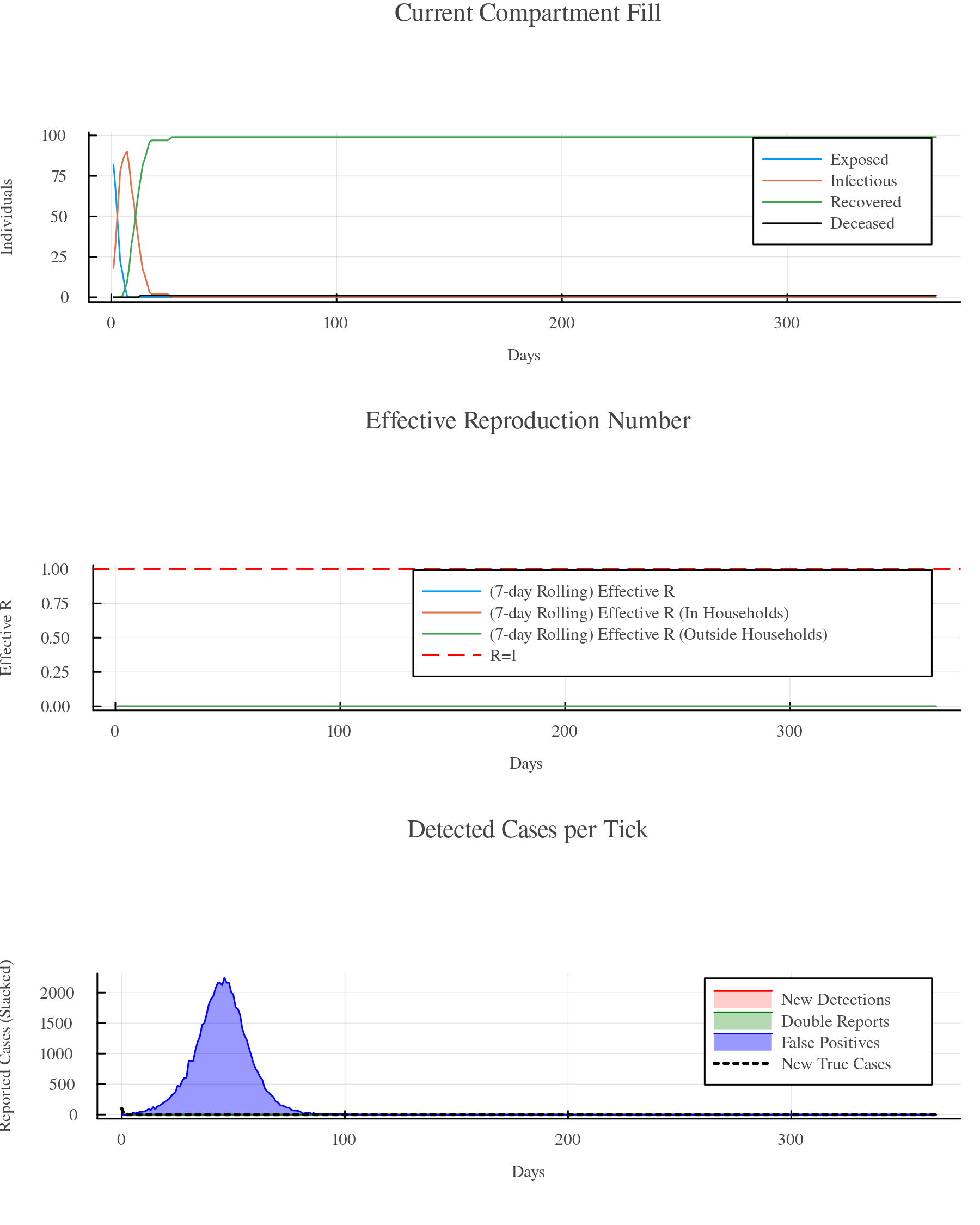

The results show that except for the initial 100 infections, no transmission dynamics are present in the simulation. The effective reproduction number is constantly at zero. However, we see an exponential growth in "detected cases" that mimicks an epidemic curve and at some point detects more than 2% of the overall individuals as new infections each day although 100% of the "detection" are false positives.

Varying Test Sensitivity (or Specificity)

Here's an example of how you can vary intervention-related parameter such as the sensitivity of a test and inspect their influence on the overall dynamics. The code below defines what we call a "scenario-function" (testing_scenario!()). It takes the Simulation object and a sensitivity argument to parameterize the test. That way, it is much easier to set up multiple intervention scenarios with varying parameters. Moreover, the example uses the Batch functionality to easily aggregate all simulations and facilitate the execution and post-processing.

using GEMS

# to facilitate parameterization, set up a function
# that adds a scenario to a simulation object
function testing_scenario!(sim, sens)
    # define test type (PCR test) and pass sensitivity
    PCR_Test = TestType("PCR Test", pathogen(sim), sim, sensitivity = sens)
    # define self isolation strategy
    self_isolation = IStrategy("Self Isolation", sim)
    add_measure!(self_isolation, SelfIsolation(14))
    # define testing strategy that triggers self isolation
    testing = IStrategy("Testing", sim)
    add_measure!(testing, Test("Test", PCR_Test, positive_followup = self_isolation))

    trigger = SymptomTrigger(testing)
    add_symptom_trigger!(sim, trigger)
end

# use batch functionality to compare results
sims = Simulation[]
push!(sims, Simulation(label = "Baseline"))

# add scenarios with varying test sensitivities between 50% and 100%
for i in 0.5:0.1:1.0
    s = Simulation(label = "Sensitivity: $(100 * i)%")
    testing_scenario!(s, i)
    push!(sims, s)
end

b = Batch(sims...)
run!(b)
rd = ResultData(b)

gemsplot(rd, type = (:TickCases, :CumulativeIsolations), legend = :topright)

Plot

Can I run experiments that vary a test's specificity the same way?

Yes.

Limited Capacity (Testing)

In public health practice, working with limited resource capacities is often a challenging factor. This example demonstrates the impact of a capacity limit (regarding tests) on the overall observed progression. We compare two scenarios in which symptomatic individuals are tested (no other intervention applied). However, in the second scenario, only 50 tests can be applied per day.

Scenario Summary:

  • 15% transmission rate (to spread out the curve)
  • Symptomatic individuals are tested in both scenarios
  • No further interventions apply
  • In the second scenarios, only the first 50 symptomatic individuals per day are tested
using GEMS, Plots

# BASELINE: simulation with unlimited testing capacity
baseline = Simulation(label = "Unlimited Testing", transmission_rate = 0.15)
PCR_Test_b = TestType("PCR Test", pathogen(baseline), baseline)
testing_b = IStrategy("Testing", baseline)
add_measure!(testing_b, Test("Test", PCR_Test_b))
trigger_b = SymptomTrigger(testing_b)
add_symptom_trigger!(baseline, trigger_b)

# helper struct to count daily tests
mutable struct TestCounter
    tick
    count
end

# helper function to add up daily tests
# returns true until test capacity for the day (50) is used up
function test_available!(sim, tc)
    if tick(sim) > tc.tick
        tc.tick = tick(sim)
        tc.count = 1
    else
        tc.count += 1
    end
    tc.count < 50 ? true : false
end

# SCENARIO: simulation with 50 tests per day
tc = TestCounter(0,0) # test counter (tick, tests)
scenario = Simulation(label = "Limited Testing Capacity", transmission_rate = 0.15)
PCR_Test_s = TestType("PCR Test", pathogen(scenario), scenario)
testing_s = IStrategy("Testing", scenario)
add_measure!(testing_s, Test("Test", PCR_Test_s),
    condition = i -> test_available!(scenario, tc)) # condition "adds up" daily tests
trigger_s = SymptomTrigger(testing_s)
add_symptom_trigger!(scenario, trigger_s)

run!(baseline)
run!(scenario)

rd_b = ResultData(baseline)
rd_s = ResultData(scenario)

gemsplot([rd_b, rd_s],
    type = (:TickCases, :EffectiveReproduction, :ObservedReproduction, :ActiveDarkFigure),
    size = (1000, 1200))

Plot

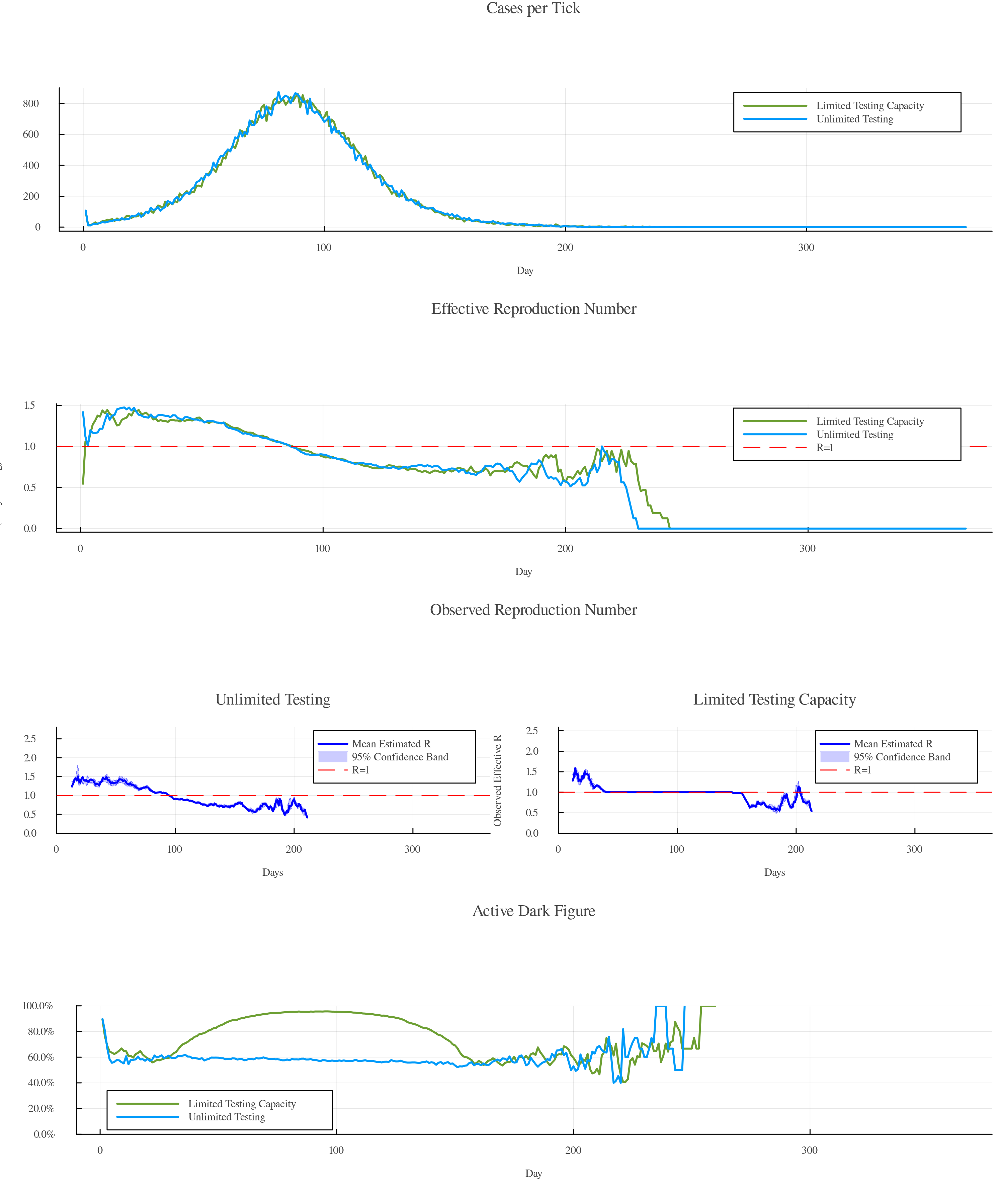

We see that both simulations have a very similar true infection- and effective reproduction number curves. The observed reproduction number, however, differs significantly once the daily-testing threshold of 50 cases is reached. In the second scenario, the observed reproduction number is constantly at exactly 1, suggesting that the growth of the epidemic is linear instead of exponential. This is due to the fact that we get the limited 50 positive tests each day, every day. The active dark figure reveals that once the threshold is reached, the number of undetected cases siddenly spikes. While this example considers capacity limits with regard to testing, you can apply the same mechanics to other capacity-constrained measures such as contact-tracing or vaccination.

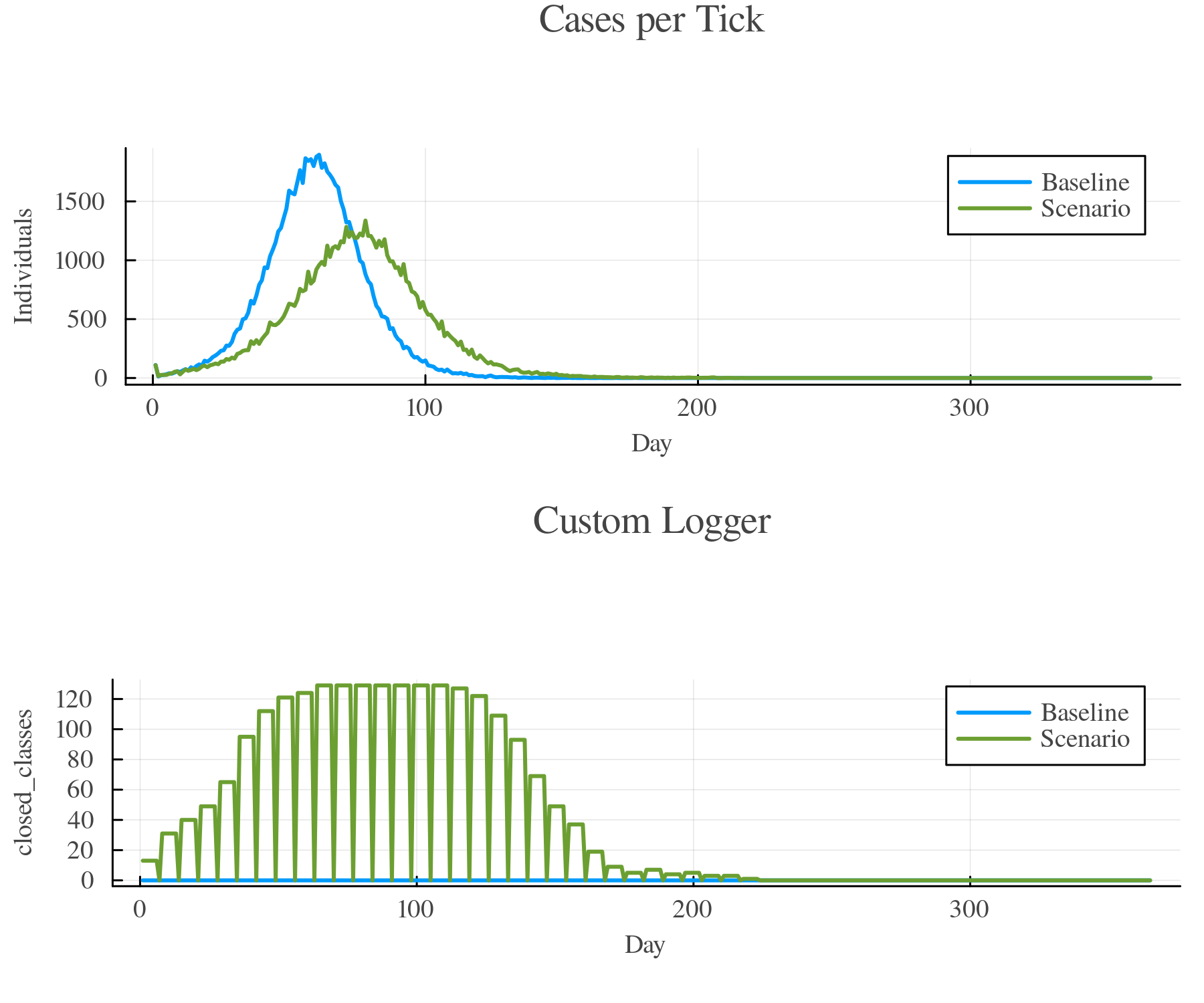

Pool Testing

Besides individual testing, GEMS also offers the option to perform so-called "pool tests". Such tests return a positive result if at least one individual in a given setting is infected. Working with pool tests is very similar to other testing scenarios with the main difference being, that pool tests are applied to settings, not to individuals. Consequently, a positive pool test does not provide any information about whom of the individuals is infected. The example below tests all school classes every seven days and closes the class for the following week if the pool test result is positive. We furthermore add a CustomLogger to track the number of currently closed school classes.

Scenario Summary:

  • Pool-testing every school class once a week
  • If test is positive, school class is closed for the week
using GEMS
# simulation without interventions
baseline = Simulation(label = "Baseline")

self_isolation = IStrategy("Self Isolation", scenario_1)
add_measure!(self_isolation, SelfIsolation(14))
trigger = SymptomTrigger(self_isolation)
add_symptom_trigger!(scenario_1, trigger)

# simulation with school class closure for 7 days if pool test positive
scenario = Simulation(label = "Scenario")
# define test type (PCR test)
PCR_Test = TestType("PCR Test", pathogen(scenario), scenario)
# strategy that closes classes for the next 6 days
class_close_and_reopen = SStrategy("Class Close and Reopen", scenario)
add_measure!(class_close_and_reopen, CloseSetting())
add_measure!(class_close_and_reopen, OpenSetting(), offset = 6)
# strategy that tests whether at least one infected individual is in class
class_pool_test = SStrategy("Class Monday Pool Testing", scenario)
add_measure!(class_pool_test, PoolTest("monday_pool_testing", PCR_Test,
    positive_followup = class_close_and_reopen))
# add trigger that is being fired every 7 days for each school class
stt = STickTrigger(SchoolClass, class_pool_test, interval = Int16(7))
add_tick_trigger!(scenario, stt)

b = Batch(baseline, scenario)

# add logger to track number of currently closed school classes
cl = CustomLogger(closed_classes = sim -> sum(.!is_open.(schoolclasses(sim))))
customlogger!(b, cl)

run!(b)
rd = ResultData(b)

gemsplot(rd, type = (:TickCases, :CustomLoggerPlot))

Plot

Recurrent Testing

Let's consider an example where individuals can get tested multiple times. The code below compares two scenarios where individuals go into self-isolation for 10 days upon experiencing symptoms. In the second example, individuals can get tested after five days and leave isolation if the test is negative. With a positive test, individuals can get another test two days later. We neglect the fact that this will cause some tests to be performed on day 11.

Scenario Summary:

  • A symptomatic individual goes into self-isolation for 10 days
  • After day 5, they can get a test
  • If the test is negative, the individual may leave isolation
  • If the test is positive, the individual remains isolated and may test again after 48 hours
  • Individuals will get tested in a two-day interval as long as they are infected
using GEMS

# SCENARIO 1: simulation with self-isolation only
scenario_1 = Simulation(label = "Isolation Only")
self_isolation = IStrategy("Self Isolation", scenario_1)
add_measure!(self_isolation, SelfIsolation(14))
trigger_1 = SymptomTrigger(self_isolation)
add_symptom_trigger!(scenario_1, trigger_1)

# SCENARIO 2: simulation with self-isolation and recurrent testing
scenario_2 = Simulation(label = "Recurrent Testing")
# define test type (PCR test)
PCR_test = TestType("PCR Test", pathogen(scenario_2), scenario_2)
# strategy that ends isolation
end_isolation = IStrategy("End Isolation", scenario_2)
add_measure!(end_isolation, CancelSelfIsolation())
# testing strategy that triggers itself after two days if positive
recurrent_test = IStrategy("Recurrent Testing", scenario_2)
add_measure!(recurrent_test,
    Test("Recurrent Test", PCR_test,
        positive_followup = recurrent_test,
        negative_followup = end_isolation),
    offset = 2)
# self-isolation and initial testing strategy
isolation_and_test = IStrategy("Self Isolation", scenario_2)
add_measure!(isolation_and_test, SelfIsolation(10))
add_measure!(isolation_and_test,
    Test("First Test", PCR_test,
        positive_followup = recurrent_test,
        negative_followup = end_isolation),
    offset = 5)
trigger_2 = SymptomTrigger(isolation_and_test)
add_symptom_trigger!(scenario_2, trigger_2)

b = Batch(scenario_1, scenario_2)
run!(b)
rd = ResultData(b)

gemsplot(rd, type = (:DetectedCases, :CumulativeIsolations))

Plot

The results show that the overall case numbers are similar in both scenarios. The extensive testing can lower the person-days spent in isolation as not all individuals will stay in isolation for the full 10 days. However, as all positive tests lead to a reported new case, we observe a substantial number of double reports (green area in the "Detected Cases"-plot). The testing measure only tests an individual for a pathogen but cannot differentiate whether it is the same infection or not. It is possible to specify that a test should not lead to a new case being reported. Please look up the Test measure's parameterization options. The next tutorial considers two test types where one of them does not lead to a reported case (self-applied test).

Multiple Test Types

Tutorial coming soon ...

Contact Reduction

Tutorial coming soon ...

Setting Closure

Tutorial coming soon ...

Custom Measures

Tutorial coming soon ...

Varying Mandate Adherence

Tutorial coming soon ...

Adapting Behavior

Tutorial coming soon ...
