4 - Running Batches

In most situations, running a simulation once is not sufficient. This tutorial teaches you how to work with so-called batches of simulations.

Repeating Simulations

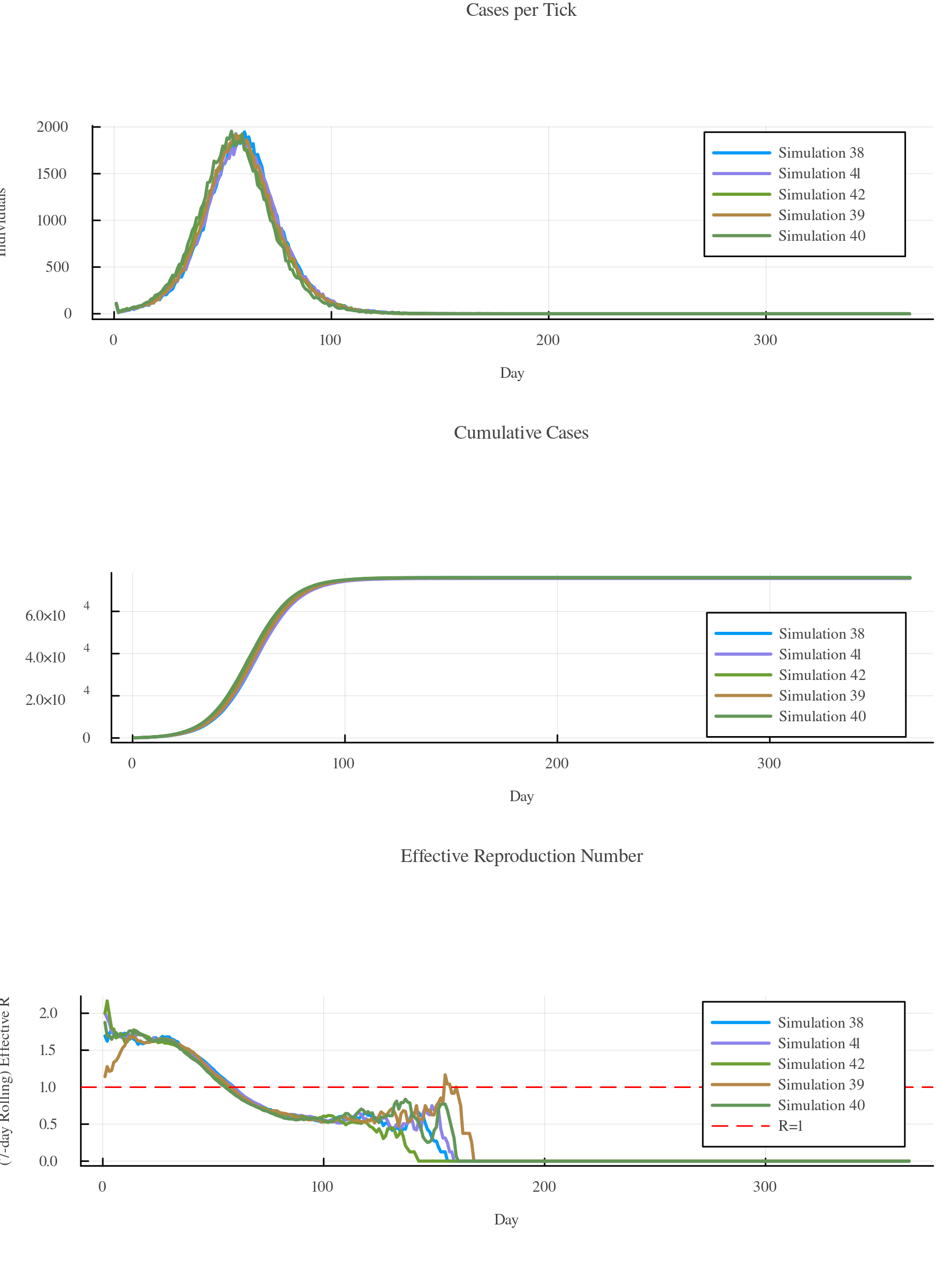

You can instantiate a simulation multiple times and add them to a vector. The Batch(...) function creates a batch from multiple simulations. Running and post-processing of a batch works the same as for single simulations. Note that the rd variable in the example below now contains a vector of ResultData objects.

using GEMS

sims = Simulation[]
for i in 1:5
    sim = Simulation()
    push!(sims, sim)
end

b = Batch(sims...)
run!(b)
rd = ResultData(b)
gemsplot(rd)

Plot

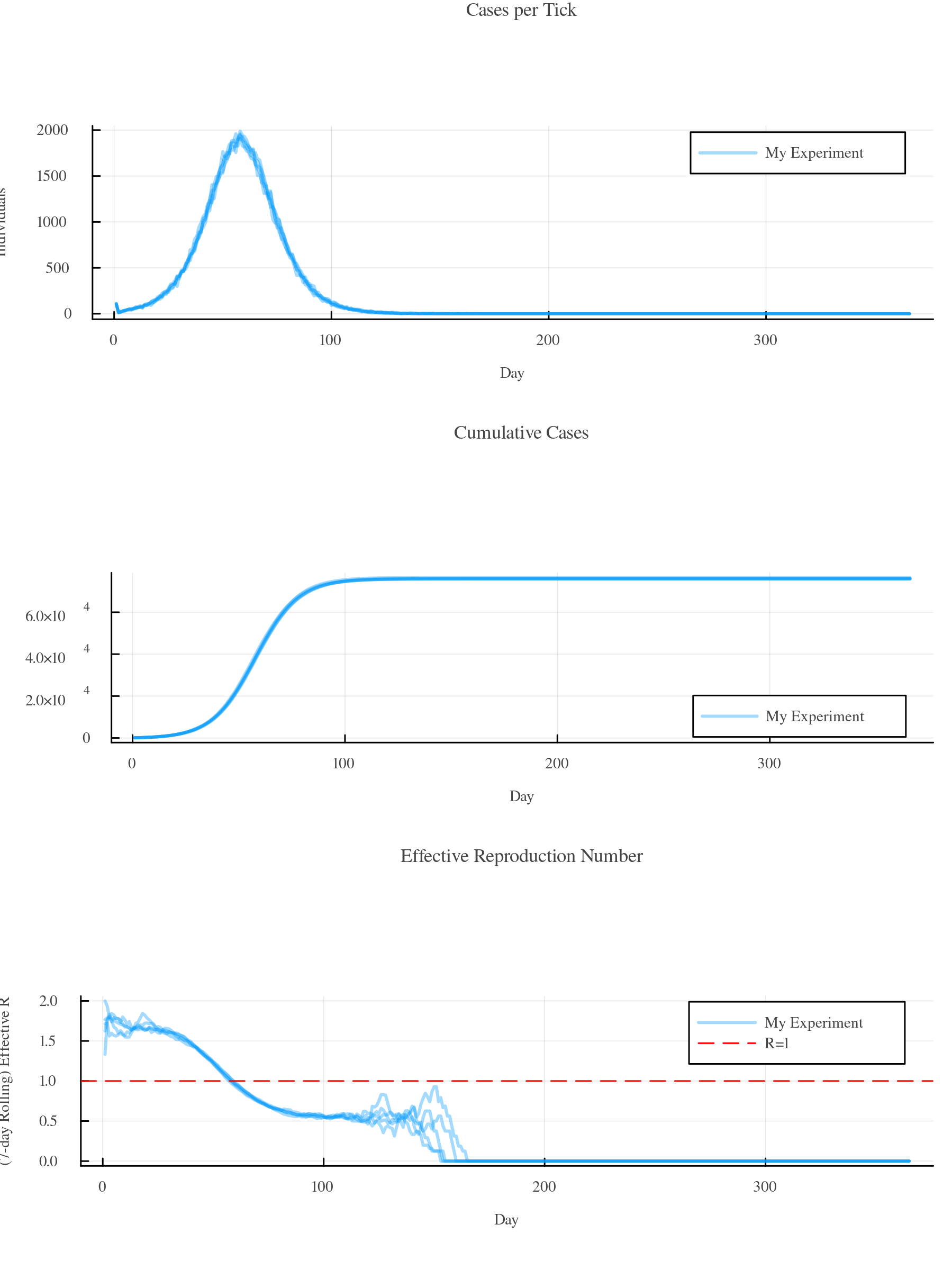

Simulation runs are automatically named (Simulation 1, Simulation 2, ...) if no explicit label is provided. Passing a label keyword to the Simulation() function causes all simulation results of the same label to be grouped:

using GEMS

sims = Simulation[]
for i in 1:5
    sim = Simulation(label = "My Experiment")
    push!(sims, sim)
end

b = Batch(sims...)
run!(b)
rd = ResultData(b)
gemsplot(rd)

Plot

Sweeping Parameter Spaces

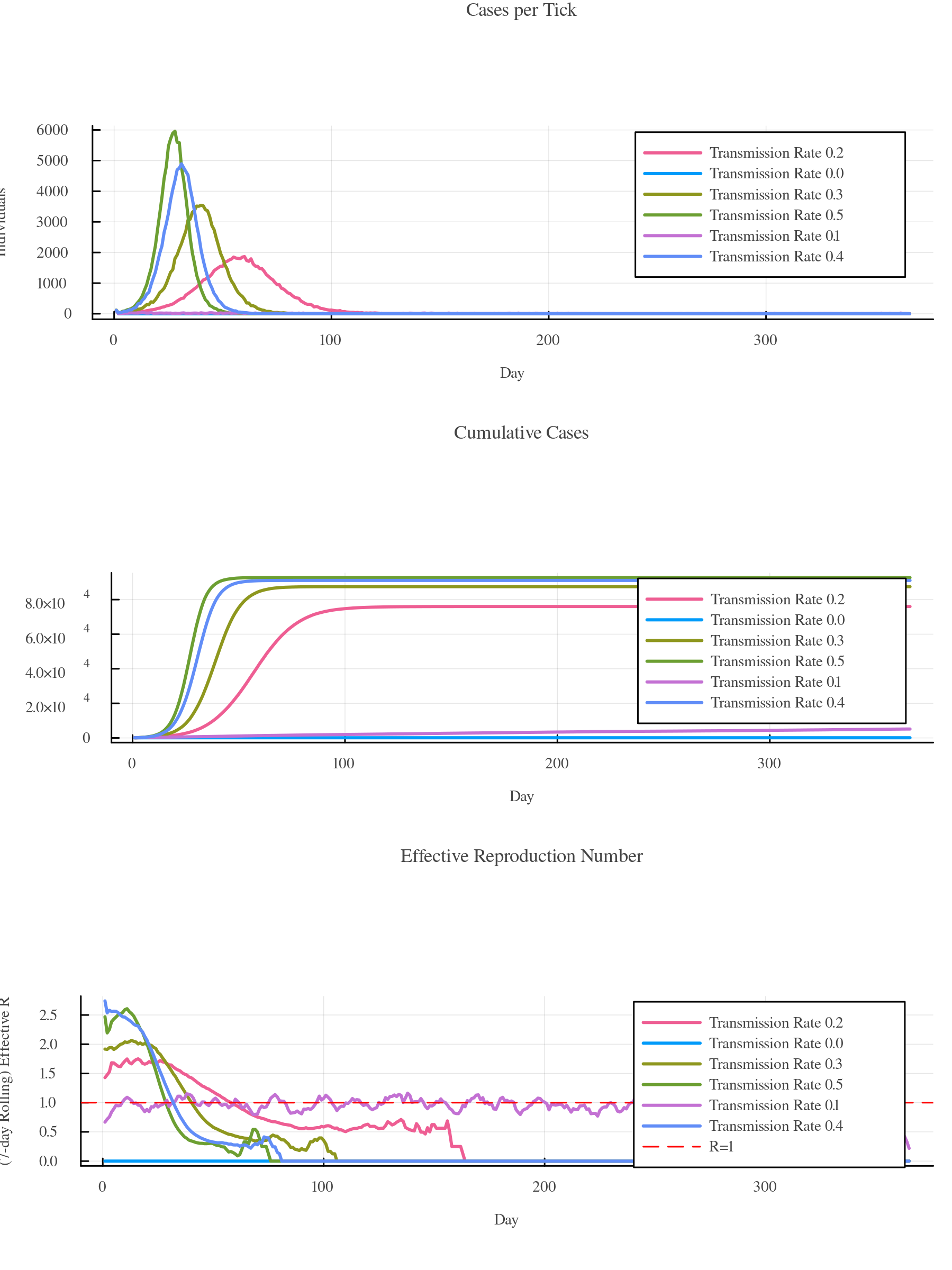

If you want to run simulations and systematically scan parameter spaces, you can use batches to do just that. Here's an example of how to run a basic simulation with varying transmission_rates:

using GEMS

sims = Simulation[]
for i in 0:0.1:0.5
    sim = Simulation(transmission_rate = i, label = "Transmission Rate $i")
    push!(sims, sim)
end

b = Batch(sims...)
run!(b)
rd = ResultData(b)
gemsplot(rd, legend = :topright)

Plot

Running Scenarios

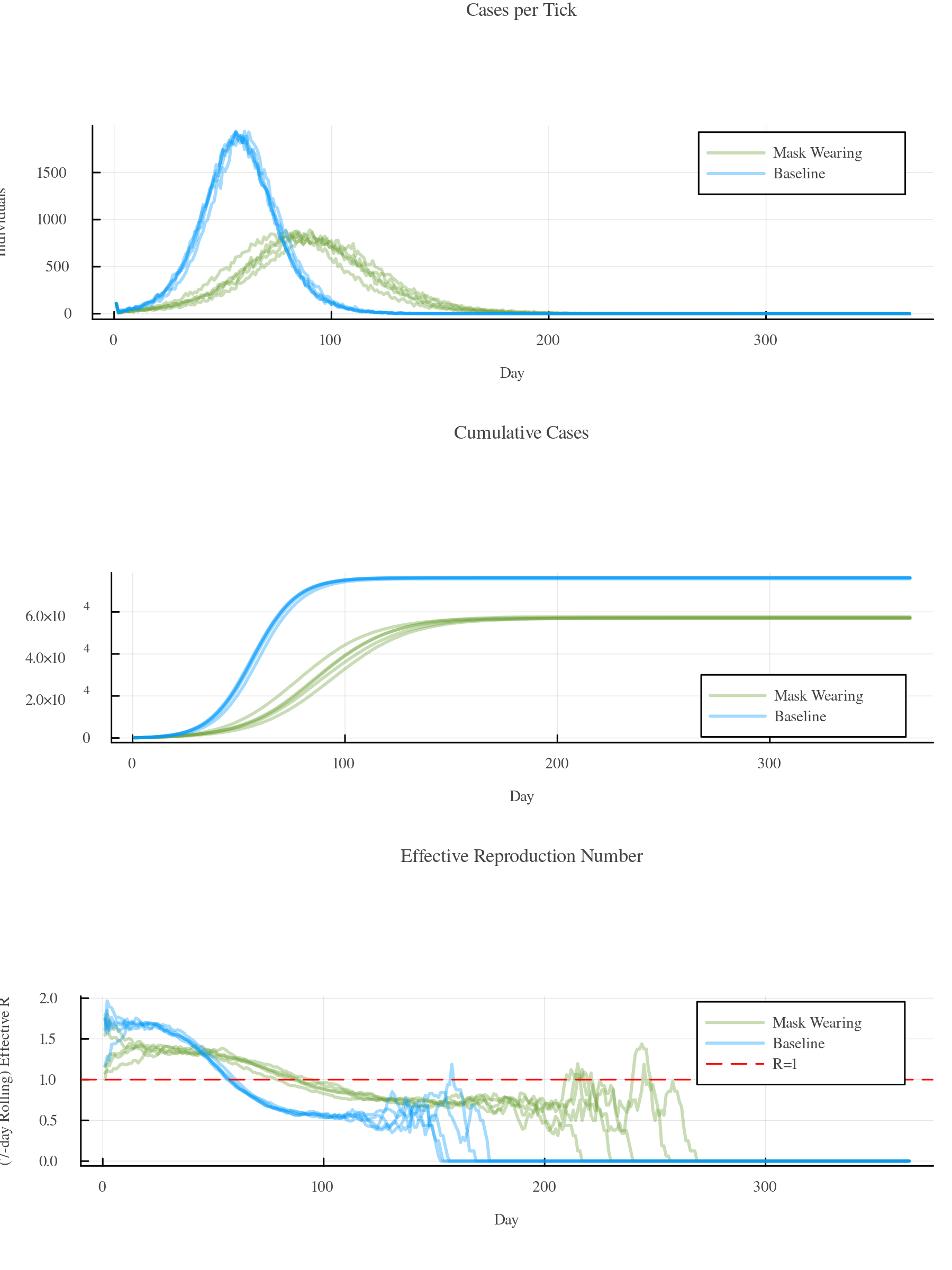

GEMS' batch functionalities offer easy options to compare different scenarios and run multiple simulations for each of them. The example below compares a baseline scenario with a scenario with a lower transmission_rate and we assume that this is due to mask-wearing mandates. It spawns five simulations for each of the scenarios and puts them into the same batch, runs it, and visualizes the processed results:

using GEMS

sims = Simulation[]
for i in 1:5
    baseline = Simulation(transmission_rate = 0.2, label = "Baseline")
    masks = Simulation(transmission_rate = 0.15, label = "Mask Wearing")
    push!(sims, baseline)
    push!(sims, masks)
end

b = Batch(sims...)
run!(b)
rd = ResultData(b)
gemsplot(rd)

Plot

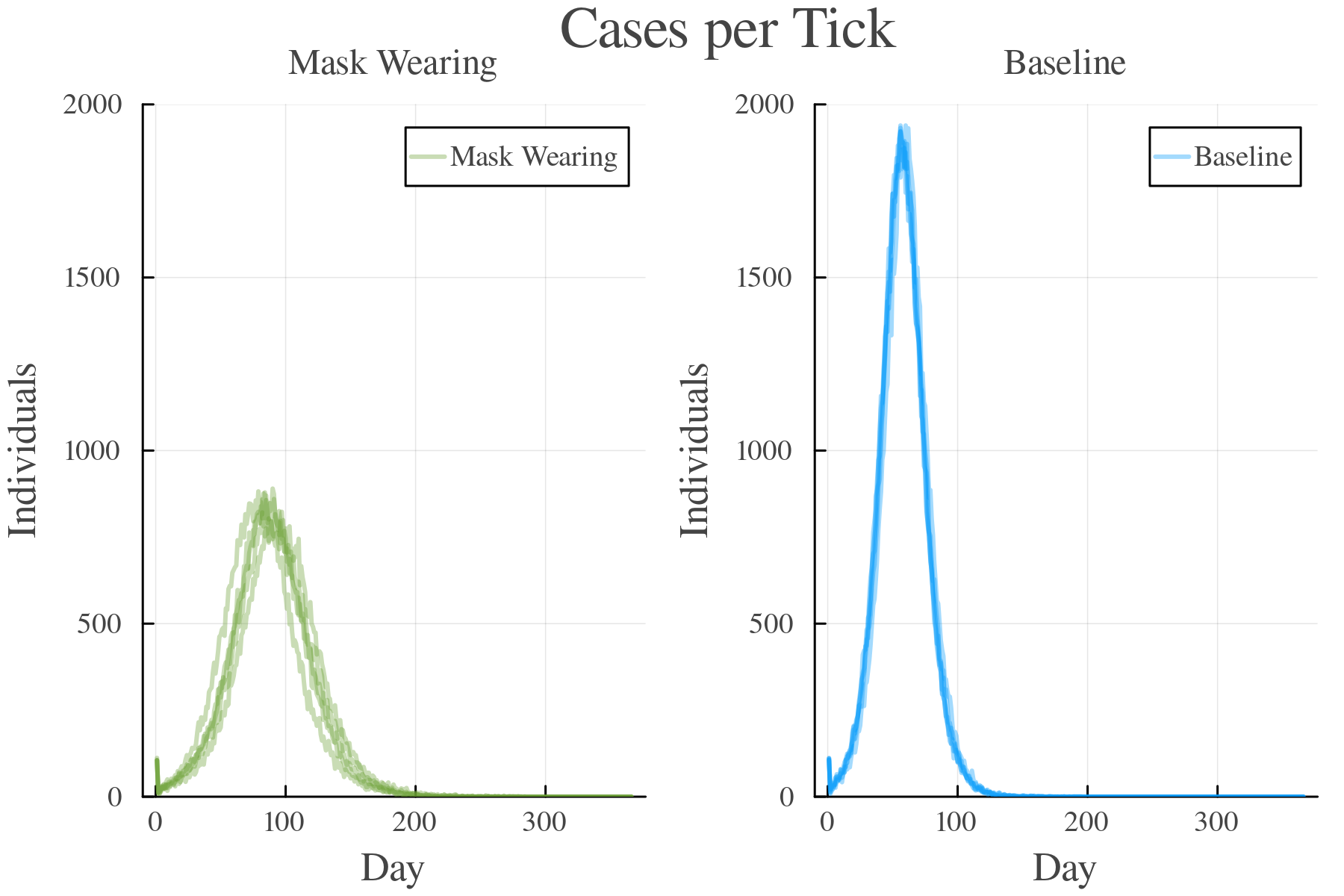

Use the combined = :bylabel keyword to show both scenarios side-by-side (pass the ylims attribute to unify axis-scaling):

gemsplot(rd, type = :TickCases, combined = :bylabel, ylims = (0, 2000))

Plot

Of course, all of this can also be done with much more complex intervention strategies. Please look up the interventions tutorial for examples.

Merging Batches

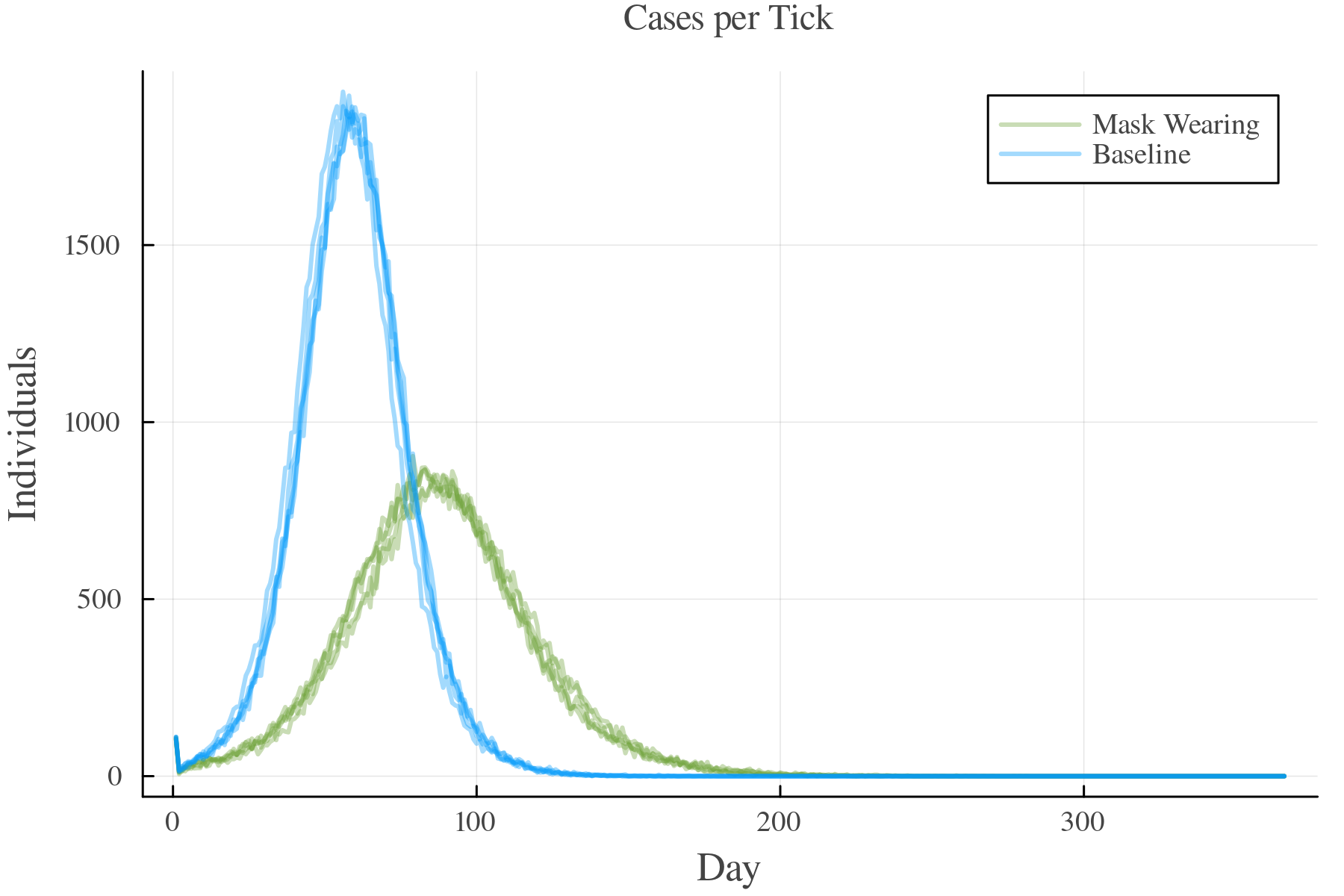

Sometimes it's easier to build up batches individually and then merge them into one for execution. Here's an example of how that can be done based on the scenario of the previous chapter:

using GEMS

sims1 = Simulation[]
for i in 1:5
    baseline = Simulation(transmission_rate = 0.2, label = "Baseline")
    push!(sims1, baseline)
end
b1 = Batch(sims1...)

sims2 = Simulation[]
for i in 1:5
    masks = Simulation(transmission_rate = 0.15, label = "Mask Wearing")
    push!(sims2, masks)
end
b2 = Batch(sims2...)

combined_batch = merge(b1, b2)
run!(combined_batch)
rd = ResultData(combined_batch)
gemsplot(rd, type = :TickCases)

Plot

BatchData Objects

While ResultData objects are the processed output of single simulation runs, BatchData objects are processed output of Batches. They contain aggregated data on the simulations, e.g., the average number of total infections including standard devation, confidence intervals and ranges. While you do not necessarily need a BatchData object to plot batches, they do contain a lot of helpful data. Here's an example:

using GEMS

sims = Simulation[]
for i in 1:5
    sim = Simulation(label = "My Experiment")
    push!(sims, sim)
end

b = Batch(sims...)
run!(b)
bd = BatchData(b)
total_infections(bd)

Output

[ Info: 23:32:43 | Initializing Simulation [My Experiment] with default configuration
...
[ Info: 23:32:56 | Running Simulation 1/5 [My Experiment]
[ Info: 23:32:57 | Running Simulation My Experiment
100.0%┣████████████████████████████████████████┫ 365 days/365 days [00:30<00:00, 12 days/s]
...
[ Info: 23:35:44 | Processing Simulation 1/5 in Batch
...
Dict{String, Real} with 6 entries:
  "upper_95" => 76052.5
  "max"      => 76088
  "min"      => 75363
  "lower_95" => 75415.1
  "mean"     => 75733.8
  "std"      => 256.672

Run the info(...) function to get an overview of values that you can retrieve from a BatchData object by calling a function of the same name (e.g., total_infections(...)) on the BatchData object:

info(bd)

Output

BatchData Entries
└ meta_data
  └ GEMS_version
  └ id
  └ execution_date
└ dataframes
  └ tick_cases
  └ effectiveR
  └ cumulative_disease_progressions
  └ cumulative_quarantines
  └ tests
└ sim_data
  └ total_tests
  └ number_of_runs
  └ attack_rate
  └ total_infections
  └ total_quarantines
  └ runs
└ system_data
...

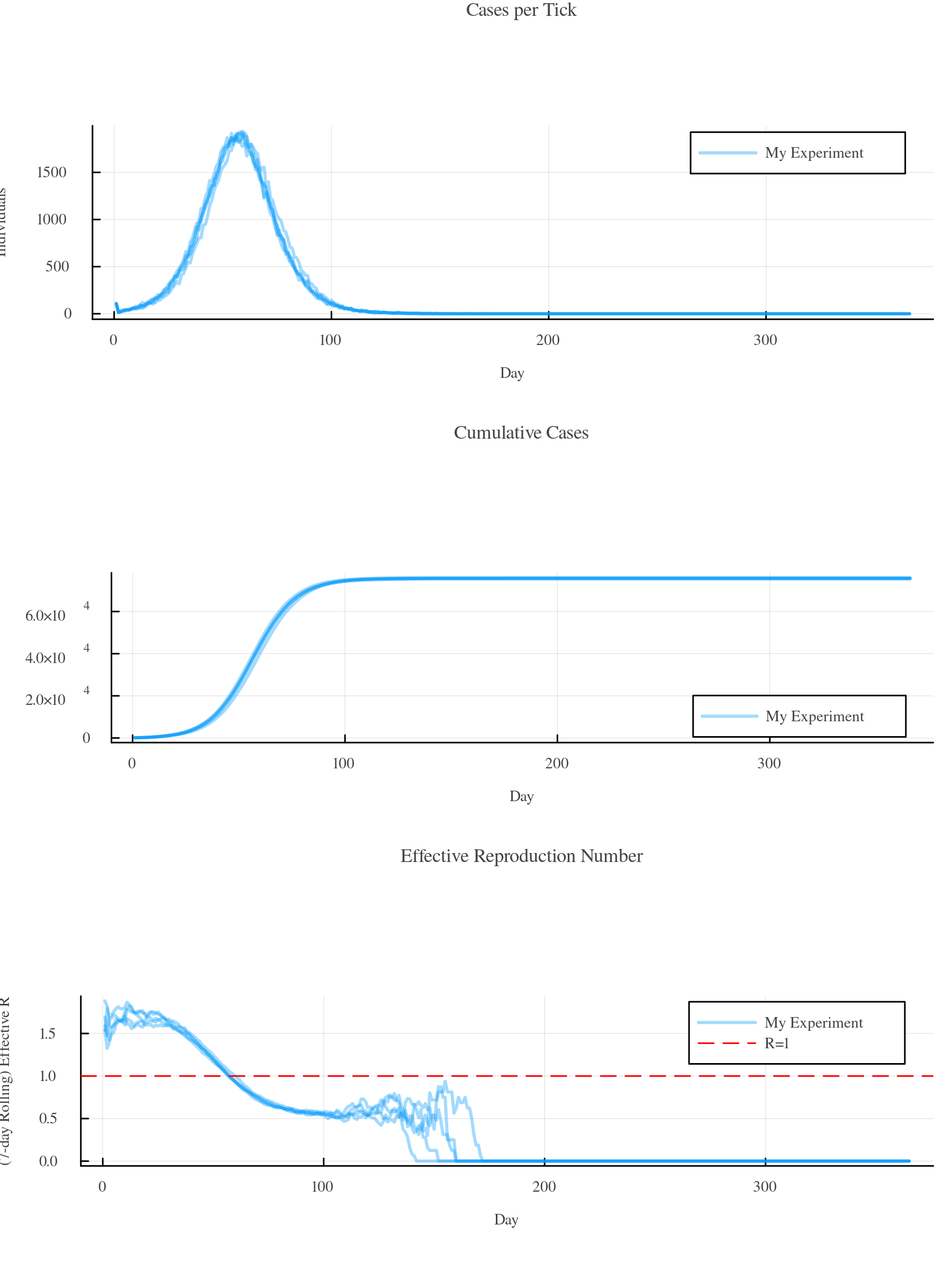

It's also possible to directly pass BatchData objects to the gemsplot() function:

gemsplot(bd)

Plot

A BatchData object contains ResultData objects for each of the individual runs. Creating a BatchData object from a Batch (as in the example above), triggers the post processing for each of the simulations contained in the batch, i.e., generating their ResultData objects. You can access them like this:

runs(bd)

Output

5-element Vector{ResultData}:
 ResultData Object
└ Dataframes inside: 22
└ Config file: DefaultConf.toml
  └ Pathogens: ["Covid19"]
└ Population file: Not available.
  └ Individuals: 100000
  └ Settings: ["Household", "SchoolClass", "Office"]
└ Simulation:
  └ Total infections: 75363
  └ Attack rate: 0.75363
  └ Total quarantine days: 0
  └ Total tests: NamedTuple()
  └ Test detection rate: 0.0
...

However, these ResultData objects are generated using the batch-optimized LightRD style (look up the tutorial on ResultDataStyles). This style does not store raw data (such as the infections dataframe) as they are usually not particularly relevant for batches, reducing the required memory significantly.

If you still want the raw data for each of the simulation runs, you can pass the DefaultResultData style to the BatchData(...) function. Have a look at this example showing how to still get the raw data when working with batches:

bd = BatchData(b, rd_style = "DefaultResultData")
rns = runs(bd)
infections(rns[1])

Output

[ Info: 23:38:51 | Processing Simulation 1/5 in Batch
[ Info: 23:38:55 | Processing Simulation 2/5 in Batch
[ Info: 23:38:59 | Processing Simulation 3/5 in Batch
[ Info: 23:39:03 | Processing Simulation 4/5 in Batch
[ Info: 23:39:07 | Processing Simulation 5/5 in Batch
        23:39:12 | └ Done
75363×47 DataFrame
   Row │ infection_id  tick   id_a   id_b    infectious_tick  removed_tick  ⋯
       │ Int32         Int16  Int32  Int32   Int16            Int16         ⋯
       ┼───────────────────────────────────────────────────────────────────────
     1 │         1134     17  88197       1               17                ⋯
     2 │        35969     56  59946       2               60                ⋯
    ⋮  |      ⋮          ⋮      ⋮      ⋮            ⋮              ⋮            ⋮
 75362 │        36576     56  22625   99999               56
 75363 │         7133     34  92825  100000               36                ⋯
38 columns and 75359 rows omitted

Custom BatchDataStyles

t.b.d.
