Base Population Model

GEMS is a discrete-time static individual-based model with a superimposed network structure. As such, all actions (contacts, infections, deaths, etc...) are being calculated for each timestep (e.g., a day) before incrementing to the next timestep.

Individuals and Settings

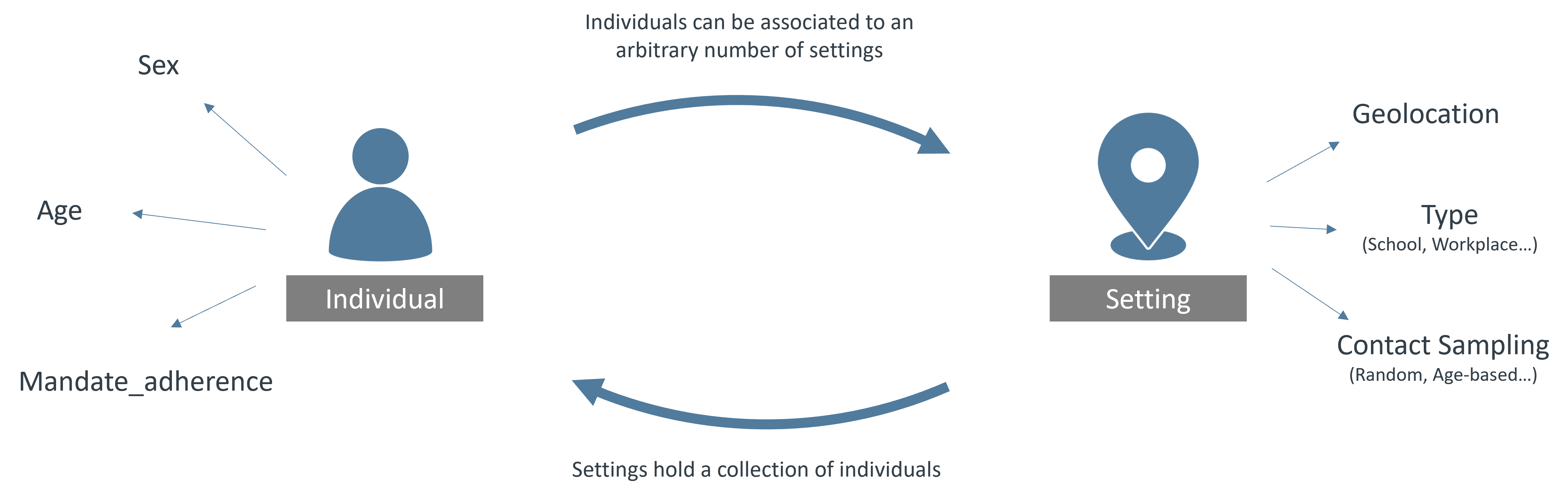

The only two entities in GEMS are Individuals and Settings. Individuals are people that have personal characteristics, such as age, sex, and many more. Look up the documentation of the Individual object to get a full list of parameters.

Settings are the (physical or social) contexts in which contacts can occur. A setting does always have a type (e.g., Household or SchoolClass) and can be geolocated. Individuals can belong to an arbitrary number of settings but only one of each type. Settings can hold an arbitrary number of individuals.

Layered Architecture

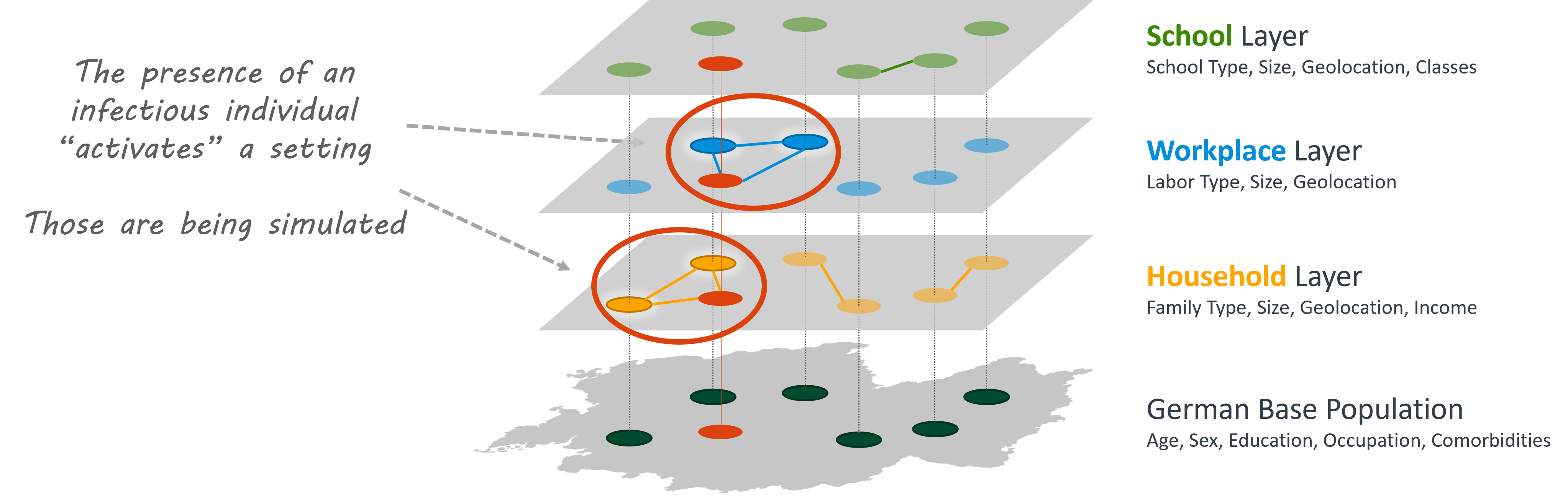

GEMS' base model architecture was designed with parallelization in mind. The model is segmented in disjunctive layers by setting type. We assume that each individual is only assigned to one setting of a particular setting type (no individual is assigned to two households, for example). This setup allows us to calculate all contacts and infections that happen during one timestep (e.g., one day) for all settings of a given type concurrently. The image below illustrates how individuals of the base population (green dots on the bottom layer) can be assigned to settings on each of the layers. A layer contains all settings of a given type (e.g., households). The edges between individuals on any of the upper layers indicates that these individuals each belong to the same setting of the respective type.

Moreover, we only simulate infections in so-called Active Settings. These are settings that contain infectious individuals and can therefore produce infections during the current timestep. Settings without infectious individuals (in-active settings) are not being simulated as they do not contribute to the overall infection dynamics. Active Settings in the image above are visualized with a white glow around the individuals. Red circles are infectious individuals.

This approach cuts the simulation execution time drastically. In our benchmarks, we were able to simulate 80 million agents for one year with 75% total infections in roughly 30 minutes on a 24 core machine. We discuss these ideas in:

Ponge, J., Horstkemper, D., Hellingrath, B., Bayer, L., Bock, W. and Karch, A., 2023, December. Evaluating Parallelization Strategies for Large-Scale Individual-based Infectious Disease Simulations. In 2023 Winter Simulation Conference (WSC) (pp. 1088-1099). IEEE. https://doi.org/10.1109/WSC60868.2023.10407633

Hierarchical Setting Structure

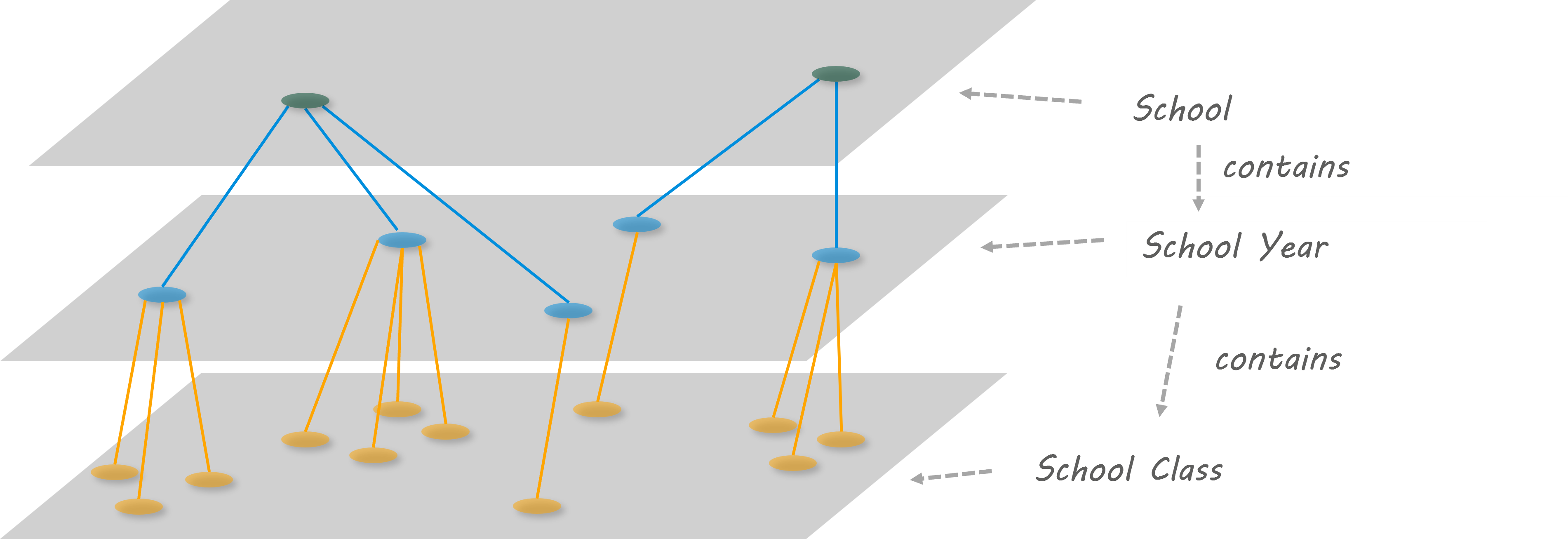

Many places, such as schools or workplaces, can be very large. However, daily contacts often just occur between class mates or office colleauges. GEMS arranges settings hierarchically to represent these nested structures.

We differentiate between IndividualSettings and ContainerSettings. The former are the settings that individuals have direct connections with. They are the lowest-level settings (e.g., School classes, offices, or households). The latter are the settings that aggregate the low-level settings to bigger ones (e.g., SchoolYears, Schools or Workplaces).

Individual Settings in GEMS are Household, SchoolClass, Office, and Municipality. Container Settings are available for school classes and offices on four layers each: SchoolClass -> SchoolYear -> School -> SchoolComplex and Office -> Department -> Workplace -> WorkplaceSite.

You can run a simulation with only Individual Settings. Container Settings are added via so-called "settings files".

Inbuilt Population Generator

If you setup a simulation without a custom population file like sim = Simulation(), GEMS will generate a non-representative baseline population on-the-fly. You can pass arguments pop_size (called n in the explanation below), avg_household_size, avg_office_size, and avg_school_size to the engine.

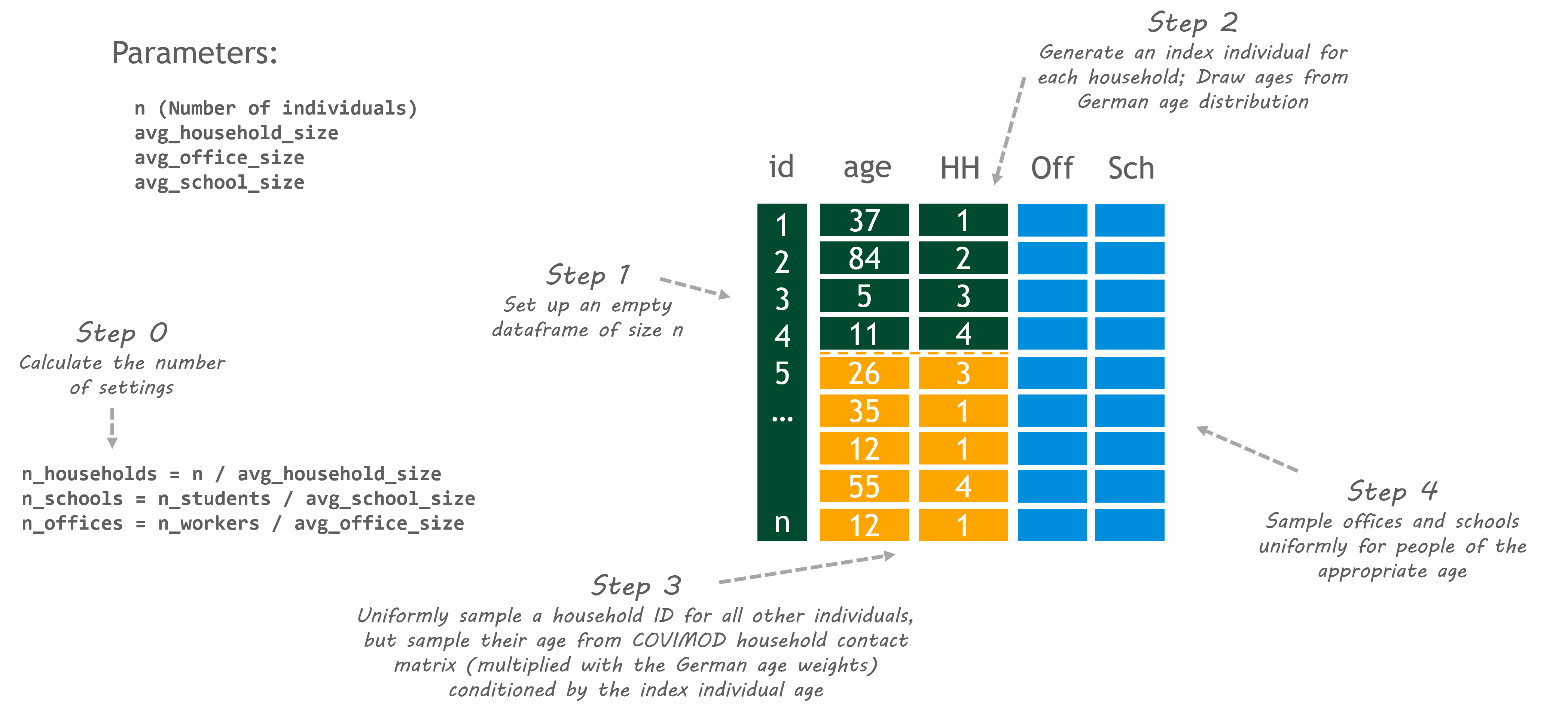

The population generator will first set up an empty dataframe with one row per individual (Step 1) and add the required number of households with one index individual per household (Step 2). Their ages will be randomly sampled from the German age distribution. We then iteratevly create the remainig individuals. To get a somewhat realistic household age-coupling of individuals, we first select on of the index individuals and sample the age for a new household member based on household contact data from the COVIMOD study (Step 3). In the last step, we sample a school ID for every agent between the ages of 6 and 18, and an office for all agents between the ages of 18 and 65. While the example refers to "schools", they are internally handled as SchoolClasses.

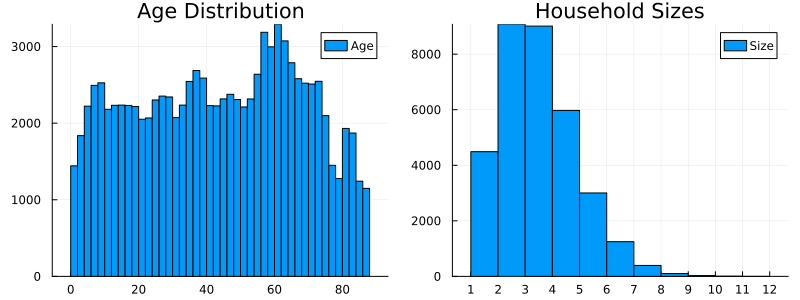

Here's a code snippet that visualizes the age- and household size distributions of such a generated population:

using GEMS, Plots
sim = Simulation()
ages = age.(individuals(sim))
hh_sizes = size.(households(sim))

plot(
    histogram(ages, label = "Age", title = "Age Distribution"),
    histogram(hh_sizes, label = "Size", title = "Household Sizes",
        bins=1:maximum(hh_sizes) + 1,
        xticks = 1:maximum(hh_sizes) + 1),
    size = (800, 300)
)
